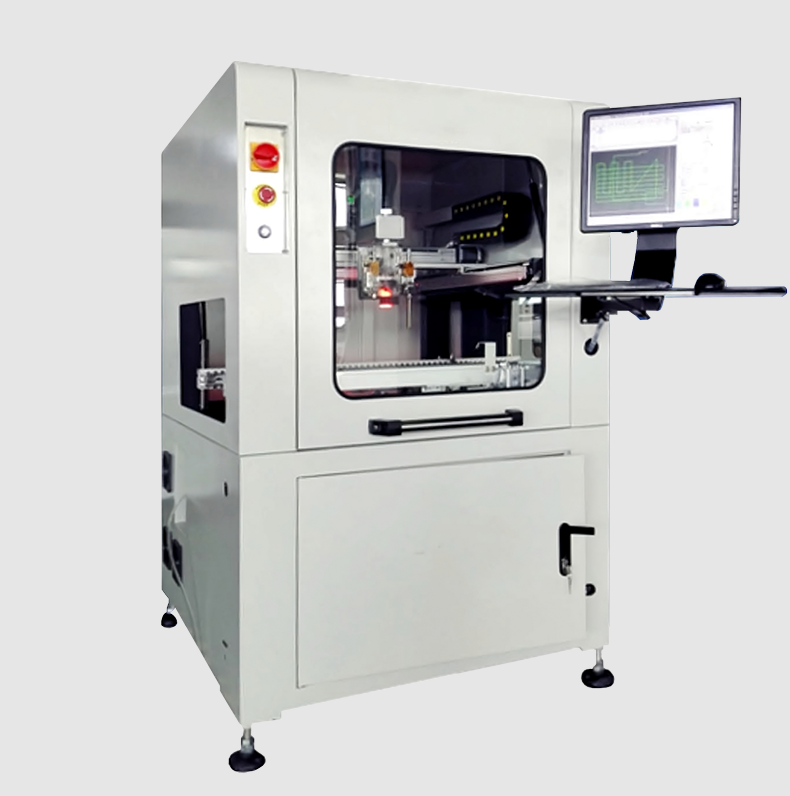

Automatic online glue dispenser HMH830D
High-Precision Selective Spraying with Advanced Motion Controlmorel
This eliminates overspray and minimizes coating on undesired areas like connectors, reducing waste and ensuring functional integrity.
Multi-Track Spraying Versatilitymorel
Dot coating: Ideal for creating precise dots of coating on specific components.
Linear spraying: Suitable for applying uniform lines of coating along edges or designated areas.
Curved spraying: Enables conformal coating on complex-shaped components or boards with intricate layouts.
Superior Coating Performance for High-Density PCBsmorel
Effectively coats the edges of devices, achieving uniform coverage and eliminating shadowing effects that can compromise coating quality in recessed areas.
Unmatched Accuracy and Reliabilitymorel
High-speed, high-reliability, and high-stability transmission and control systems ensure smooth operation and efficient handling of complex spraying processes, even for high-density circuit boards.
Intelligent Width Adjustment for Enhanced Efficiencymorel
This feature eliminates the need for manual adjustments and reduces setup time, improving overall production efficiency.
Flexible Programming and Seamless Integrationmorel
Seamless integration with SMT (Surface Mount Technology) production lines is achieved through the industry-standard SMEMA interface, enabling signal docking with other equipment for fully automated workflows.
Beyond the Basics: Applications and Future Advancements
This circuit board spraying system finds extensive applications in the electronics manufacturing industry, particularly for:
Smartphones and other mobile devices
Computer motherboards and other components
Automotive electronics
Its high precision, efficiency, and flexibility make it a valuable asset in modern production lines.
Looking ahead, the future of circuit board spraying systems likely involves:
Nano-level spraying: Achieving even finer control over the coating process to meet the demands of miniaturized electronic components.
Multi-functional integration: Combining spraying, drying, and curing functionalities within a single system for streamlined production workflows.
Intelligent control with AI: Leveraging artificial intelligence and big data analysis for real-time process optimization, predictive maintenance, and self-learning capabilities.
By continuously evolving, these spraying systems will play an increasingly crucial role in ensuring the quality, reliability, and efficiency of complex circuit board manufacturing.
|
Model |
HMH-830 |
|
L*W*H RacksizeL*W*H |
L1060mm*W1200mm*H1700mm |
|
Equipmentplatform |
T20mm steelplatechrome plated |
|
Weight |
650kg |
|
Control method |
Industrial computer+motion control card |
|
Operation method |
Computer control |
|
Programming mode |
Manualteaching |
|
Running programstorage quanty |
More than 1000 |
|
PCB transferheight |
920±20mm |
|
Transportation speed |
0-5000mm/min |
|
Transfer direction |
L→R(R→L) |
|
Transmission motor |
2stepper motors |
|
PCB width range |
50-450mm |
|
Adustment method |
Intelligent automatic adjustment |
|
Adust the driving method |
Stepper motor+double precision screwdnve |
|
X.Yaxis drve mode |
JapanFujiservo motor+precision screwmodule drve |
|
X.Yaxis maximum running speed |
800mm/s |
|
X.Yaxis positioning accuracy |
±0.02mm |
|
Zaxis maximumrunningspeed |
300mm/s |
|
Zaxis drivemode |
JapanFujiservomotor+precison screwmoduledrve |
|
Z-axis positionng accuracy |
±0.02mm |
|
Valve upand down |
2double-rod cylinders |
|
Number of valves |
2 |
|
Valve type |
1smallmist lowervave,1dispensing valve |
|
PCB board size |
MAX:W450mm*L450mm |
|
PCB board component height |
MAX:±100mm |
|
Tank volume |
A10L staness steedmner bucket wrh strg tuncinpressure tank+asmall cpaningpressuretank stain psssteelceanng pressure tank |
|
Cleaningfunction |
The device comes withacleaning functon |
|
Lighting section |
Equipment comes with lighting source |
|
Detection part |
The device comes withaUV detection light source |
|
Power supply |
AC220V 50HZ |
|
Gas source |
4-6kgf/cm² |
|
Total power |
1.8KW |
|
Part name |
brand |
|
Rack sectione |
Dinghua(sheet metal + machining +steel structure platform)↵ |
|
Module rails↵ |
Customized,Taiwan Shangyin |
|
Closed-loop motor +drivee |
Shinano +Rayse drivee |
|
Belt +closed loope |
Japan Samsung /Mikie |
|
PC motion control carde |
Resce |
|
Cylinders,solenoid valves |
SMC/AirTAC↵ |
|
power supplye |
Ming Weie |
|
PLC teaching board |
Constant control↵ |
|
0il-water separatore |
AirTacke |
|
Photoelectric sensor switche |
0mrone |
|
Synchronous wheels |
Day Chang /Homemadee |
|
Relayse |
OMRON,JAPANe |
|
switch |
Fuji,Japane |
|
U-shaped sensor |
OMRON,JAPANe |
|
Temperature control table |
German Weller/multi-function automatic temperature control soldering statione |
|
Heating cores |
German Wellere |
|
Luo Tietoue |
Dinghua self-made |
|
Fixtures↵ |
Dinghua self-madee |
