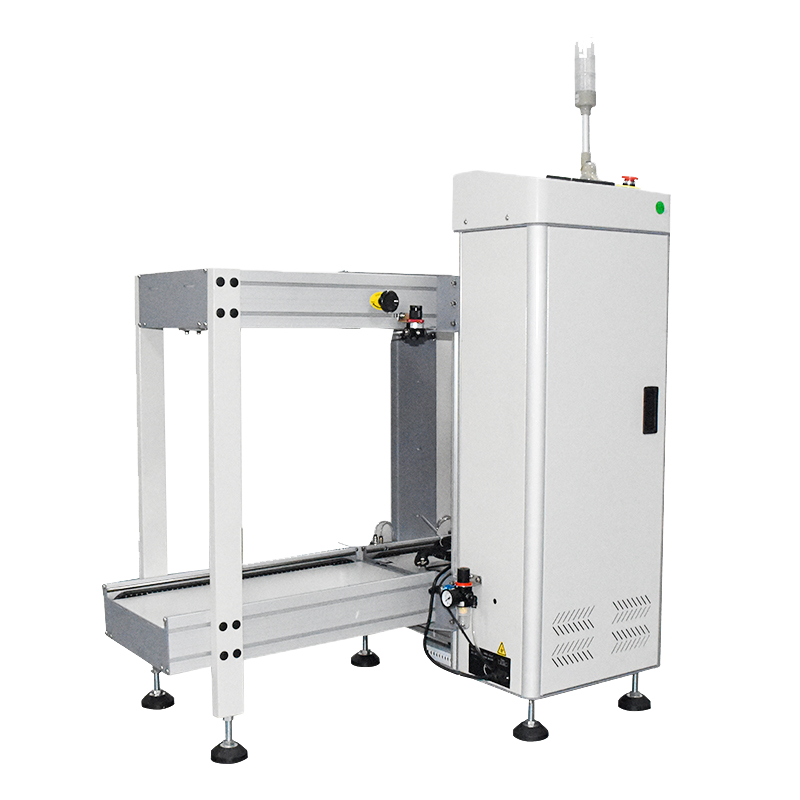

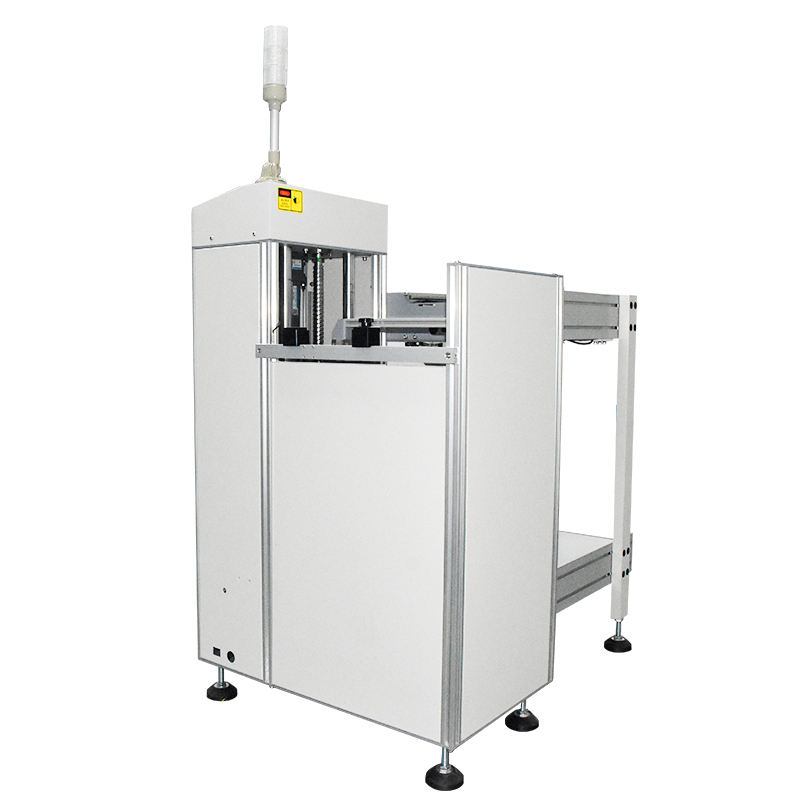

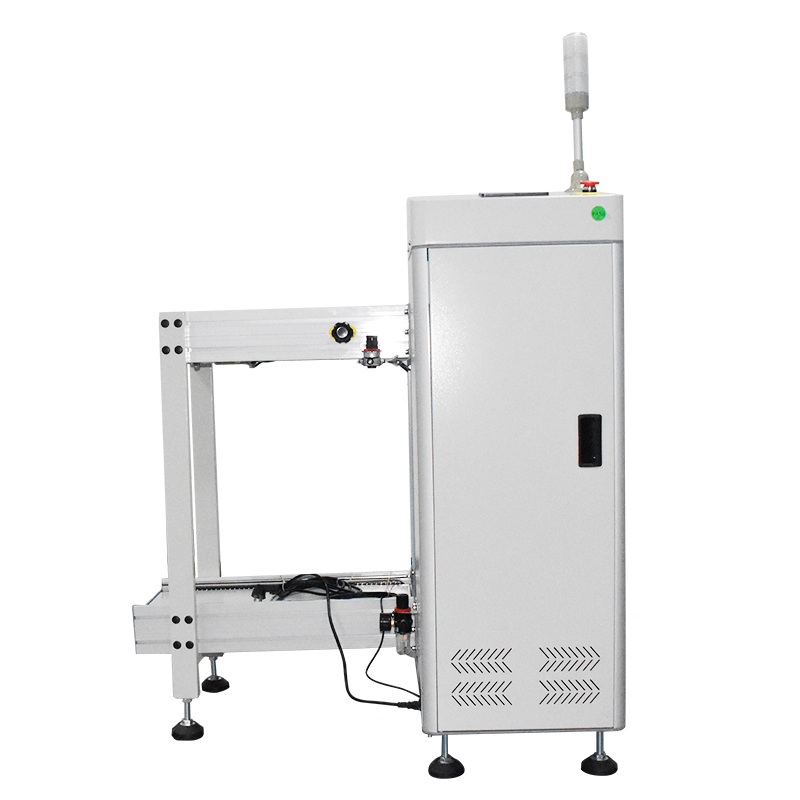

Automatic PCB Magazine Loader LD-M-BN

SMT automatic production line feeding board use, do not need to touch PCB board with hand, better protect PCB board. And can set the number of lifting and descending, the machine has high lifting accuracy, automatic material in and out of the frame, fault (sound, color) alarm function, is to achieve the automation of the whole line and high output of the necessary equipment.
* The lifting power uses gear reduction brake motor.

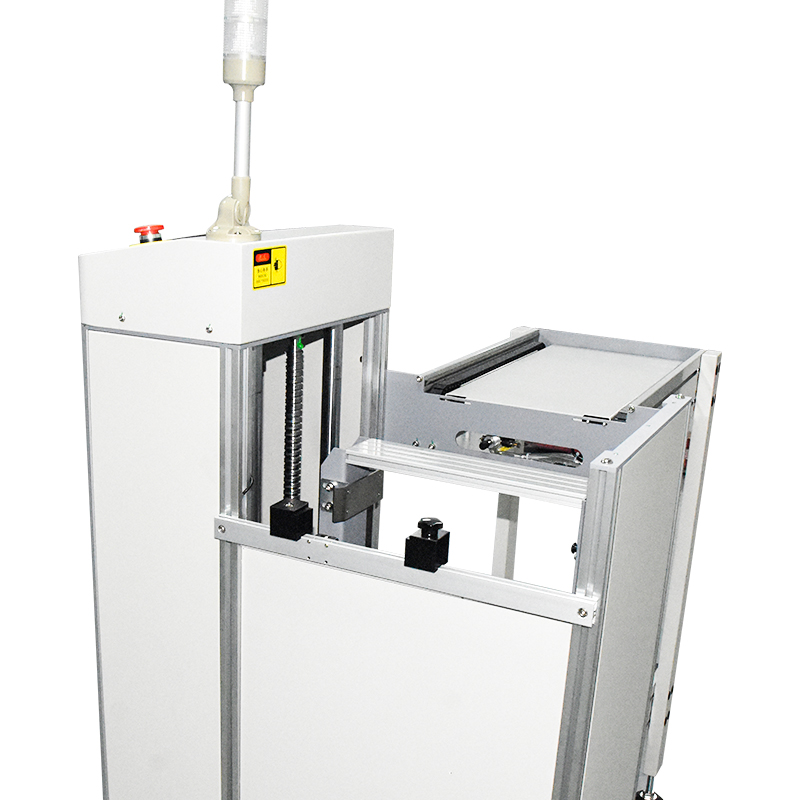

* Lifting drive uses 30MM hard shaft guide rail, with precision ball screw drive.
* The conveying track uses special profiles with anti-collision stainless steel shaft.

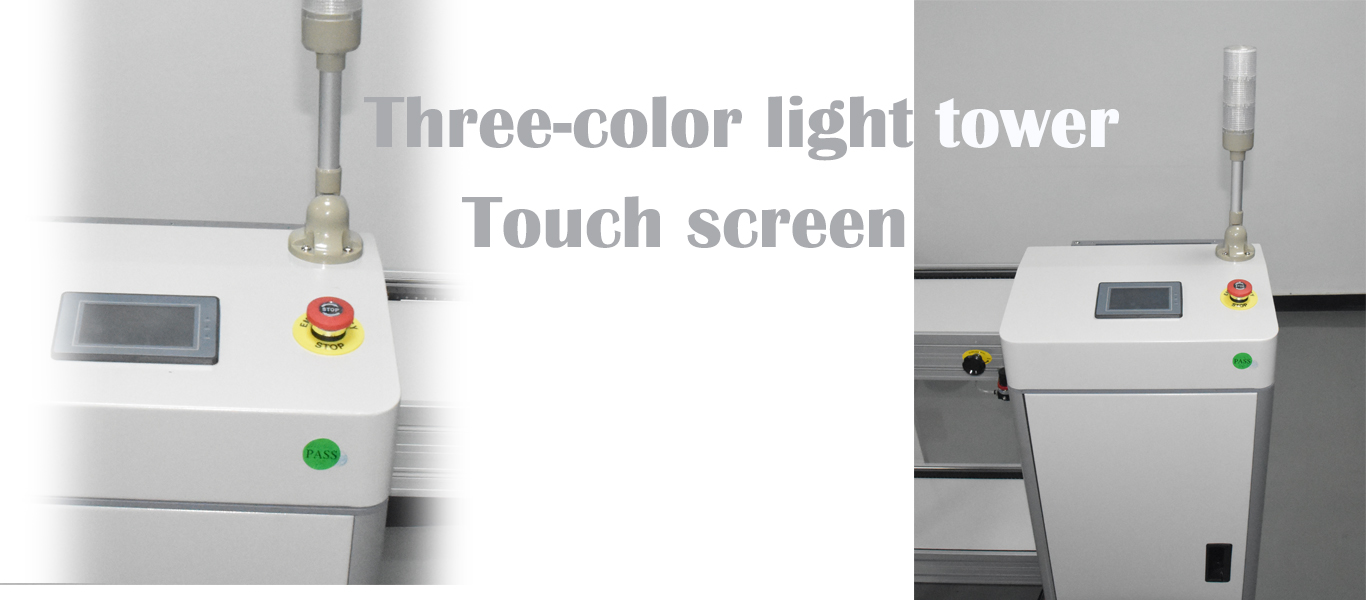

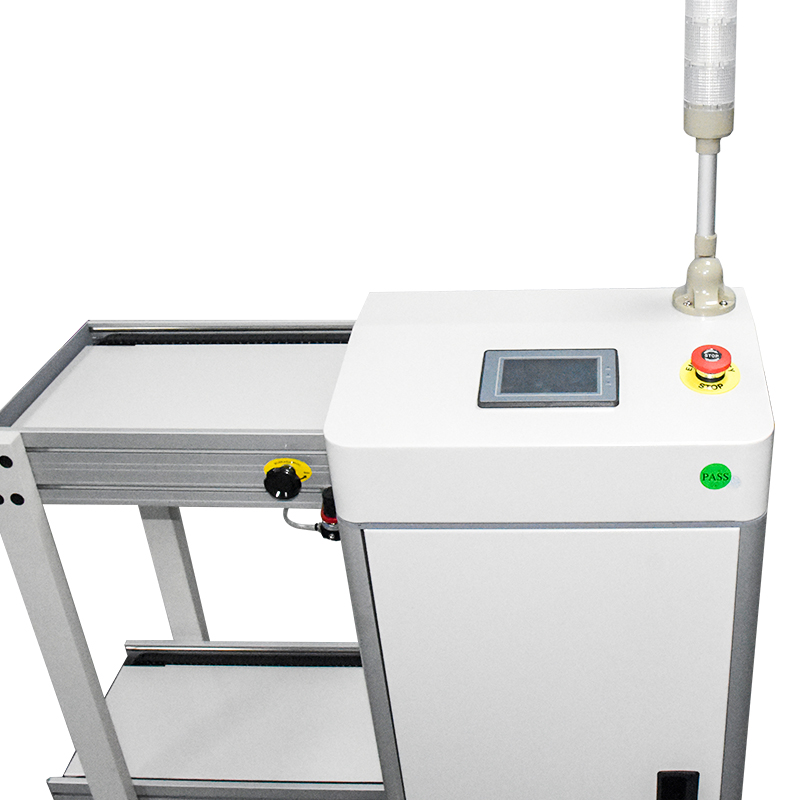

* With easy operation of the touch screen control interface.
* Equipment status indicator: three-color tower light with buzzer + touch screen alarm code display.
* OMRON sensors for induction.
* Install anti-splint inductor at the exit to protect the PCB from being fully pushed up and down.

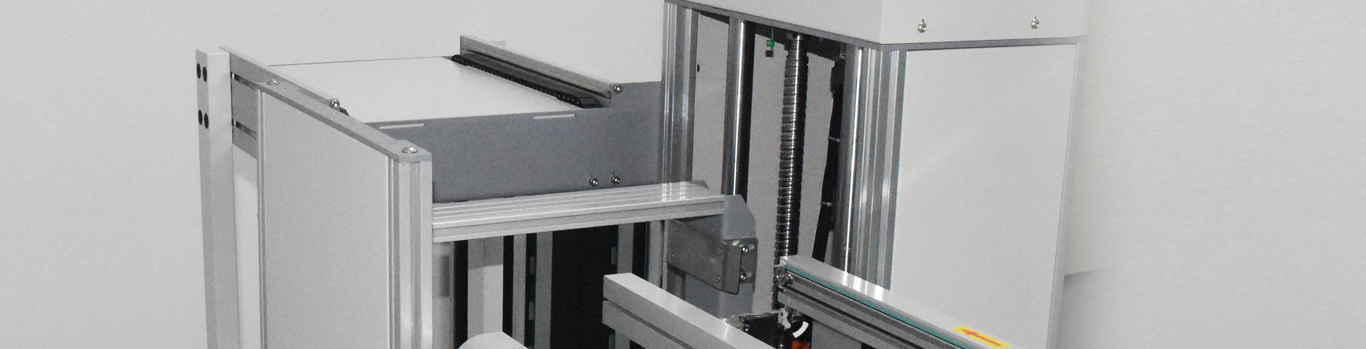

* The upper and lower pneumatic clamp can ensure the accurate position of the material frame.
* Pushing plate cylinder uses rod cylinder to push PCB out of magazine.
* The thrust of the push plate cylinder can be adjusted according to the need to prevent excessive thrust from damaging PCB board.
* The shell of the equipment adopts electrostatic powder spraying; the surface is durable.
