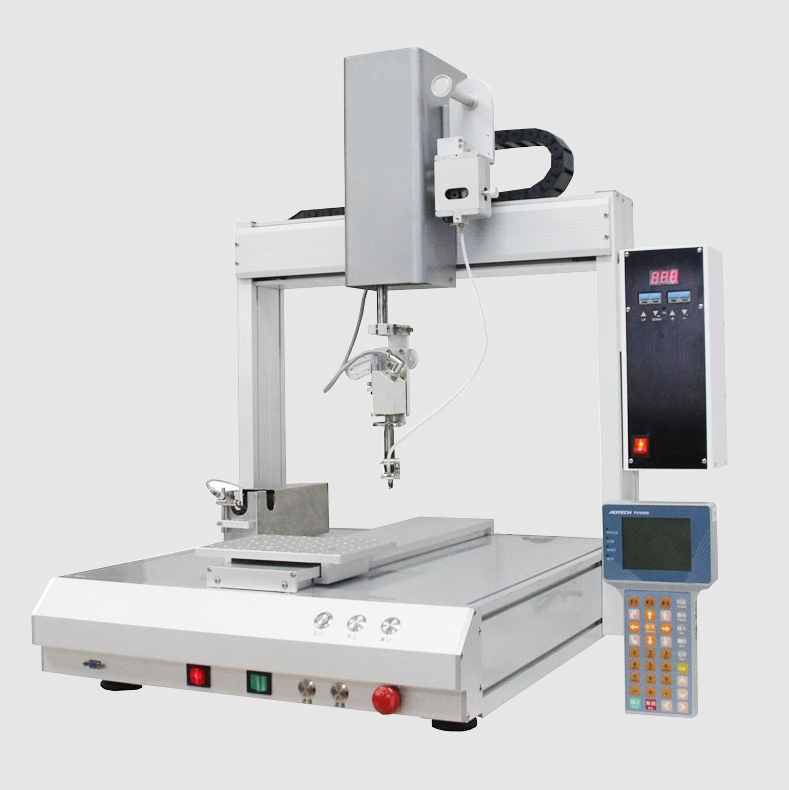

Automatic soldering robot DMHX100

A Soldering Robot is a fully automated system that performs a designated task, set by a custom program, with the utmost precision and repeatability. Each joint may have its own soldering profile. Base robots use our 150 watt power supply with a superior thermal feedback system.

Device model DMHX100
Number of axese 4-axis synchronous controle
Platform load capacitye 10kge
Number of programse 999 groupse
Corresponding to the maximum clamp sizee 450*400mm(X,Y)

product details

product Parameter

product Video

Send inquiry

Applicationmorel

Communication industry: Apple product data cable, HDMI, RJ45, FPC, tuner and other products are suitable for soldering of this equipment;
Optoelectronics industry: led display, led strip, led rectifier, led bulb, led lamp beads and other products are suitable for soldering of this equipment;
Home appliance industry: air conditioner remote control, air conditioner control panel, computer speaker, TV switch connector and other products are suitable for soldering of this equipment;
Automotive industry: ignition switches, automotive fuel sensors, navigators, motorcycle flashers and other products are suitable for soldering of this equipment;
Toy industry: Toy handle connectors, circuit boards and other products are suitable for soldering of this equipment.

Featuresmorel

▶Customize the high-strength soldering iron head according to the product, which is more efficient and durable.

▶The solder joints can be increased or decreased, and the solder joints can be modified globally, and the programming is simple and fast. ▶The slot-type fixture design makes it easy to pick and place and replace the PCBA.

▶Professional temperature control system for WELLER soldering machine, accurate temperature control and more durable.

▶Equipped with anti-collision function.

▶It can be matched with automatic conveyor belt to achieve fully automatic operation.

▶It has the functions of spot welding, drag welding, arc welding, arc welding, and irregular curve continuous welding.

▶With rotation correction function, optimization function, and misoperation correction function.

▶The repeated motion accuracy of the equipment is ±0.02mm to ensure the precise welding position.

Device model		DMHX100
Number of axese		4-axis synchronous controle
movee range	X-axis	500mm
	Y-axis	400mm
	Z-axis	100mme
	R-axis	±360°
Platform load capacitye		10kge
utmost Speed (PTP)	XY axise	800mm/sec.
	Z-axis	450mm/sec.
	R-axis↵	360°/sec.
repeat precis ione	X,Y axes	±0.02mm
	Z-axis	±0.02mm
	R-axis	±0.02°
Corresponding to the maximum clamp sizee		450*400mm(X,Y)
Number of programse		999 groupse
Drive systeme		5-phase stepper motore
Control system		PLC+PID
Temperature control rangee		40-500℃e
Temperature control accuracye		±2 degreese
Heater alarm range		2-99°C variable range
Tin feeding mechanisme		Single tin feeding mechanism
Heater power		200W:Cross heatere
Tin feeding speede		0-50mm/s
Tin wire diameters are supported		weight 0.3-weight 1.2(Standard)
Alarm situatione		The tin wire is interrupted,the tin wire is blocked,and the heater is alarmede
Appearance size mme		L680W700H830mm
power supplye		AC220V±10%50/60Hz 450VA
atmospheric pressure		0.4-0.8Mpa
Associated humiditye		20-95%
Correlation temperaturee		-10-40 degrees Celsiuse
weight		80kge

Part name	brand
Rack sectione	Dinghua(sheet metal + machining +steel structure platform)↵
Module rails↵	Customized,Taiwan Shangyin
Closed-loop motor +drivee	Shinano +Rayse drivee
Belt +closed loope	Japan Samsung /Mikie
PC motion control carde	Resce
Cylinders,solenoid valves	SMC/AirTAC↵
power supplye	Ming Weie
PLC teaching board	Constant control↵
0il-water separatore	AirTacke
Photoelectric sensor switche	0mrone
Synchronous wheels	Day Chang /Homemadee
Relayse	OMRON,JAPANe
switch	Fuji,Japane
U-shaped sensor	OMRON,JAPANe
Temperature control table	German Weller/multi-function automatic temperature control soldering statione
Heating cores	German Wellere
Luo Tietoue	Dinghua self-made
Fixtures↵	Dinghua self-madee
