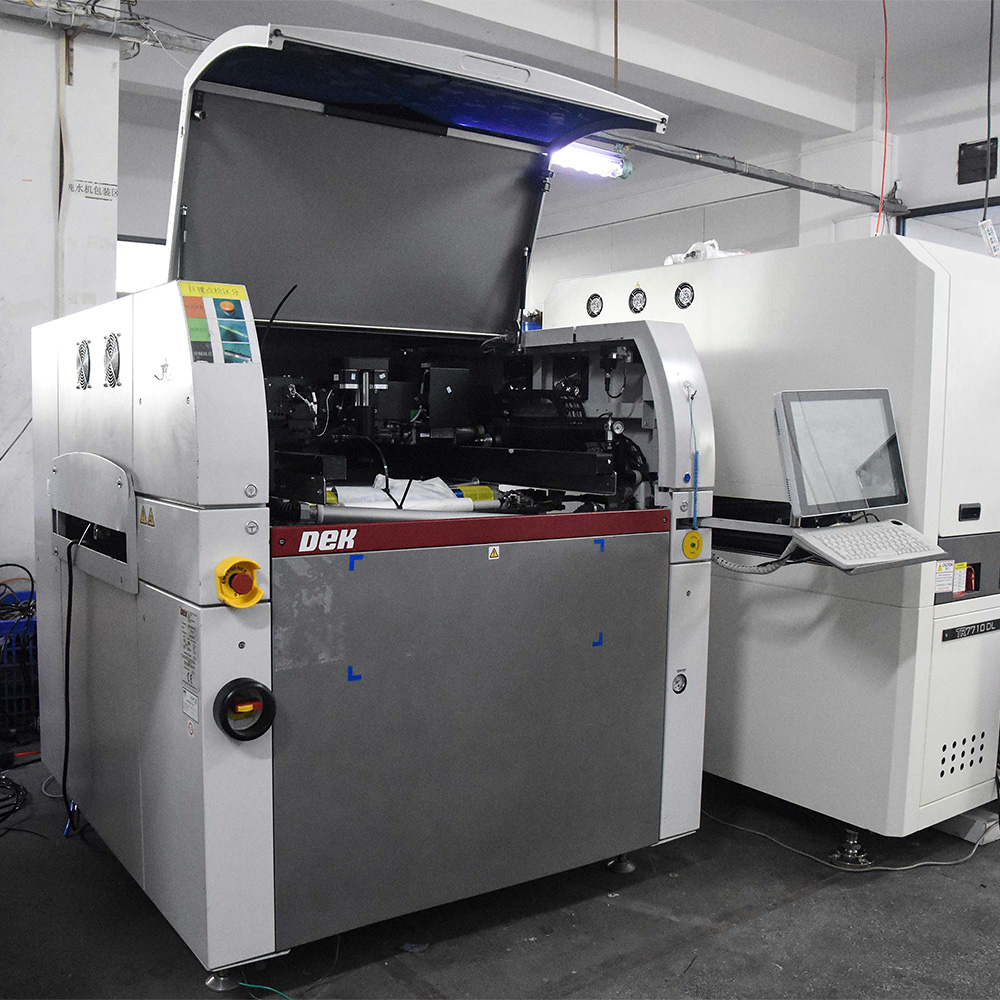

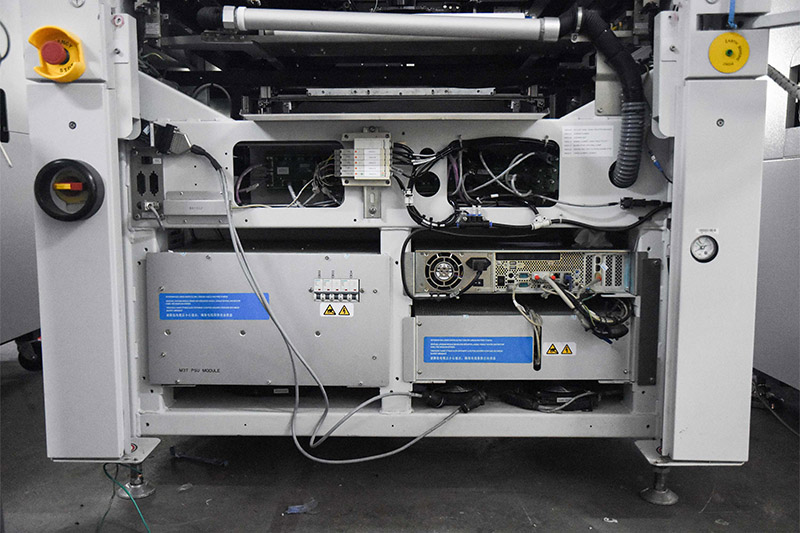

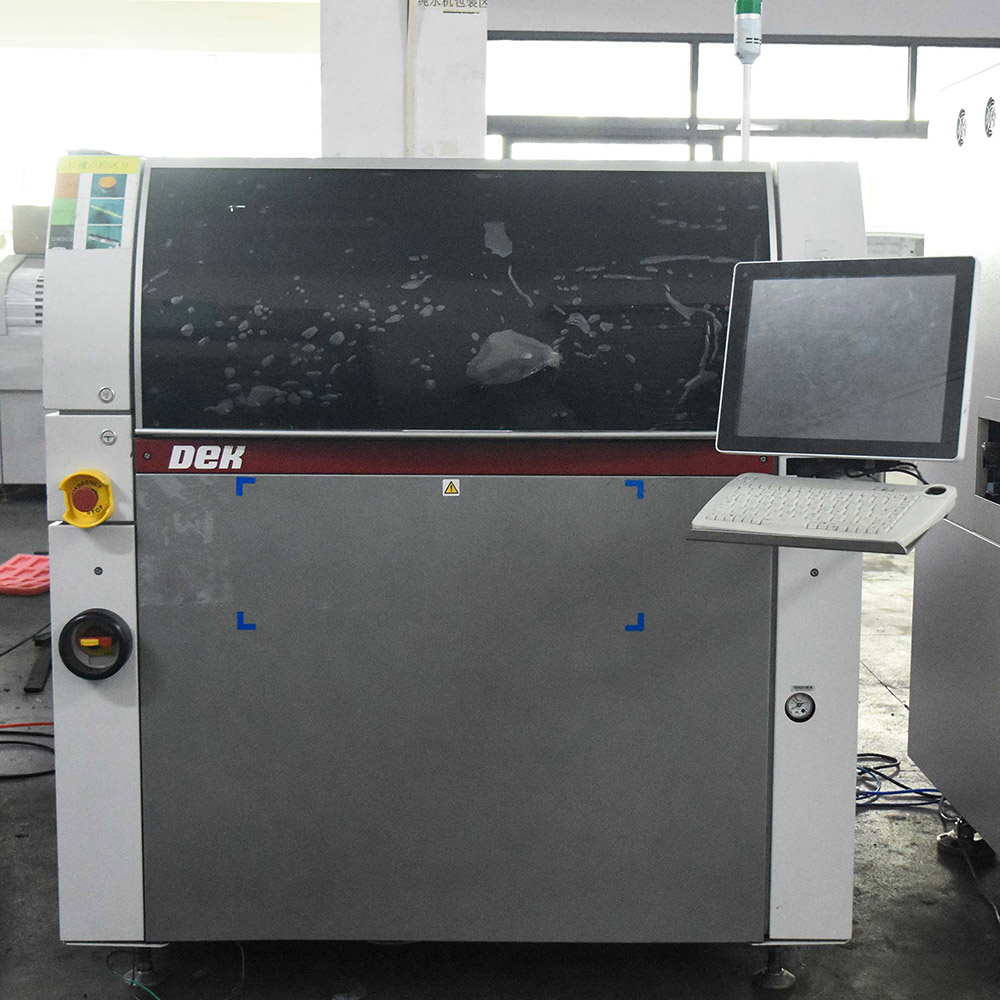

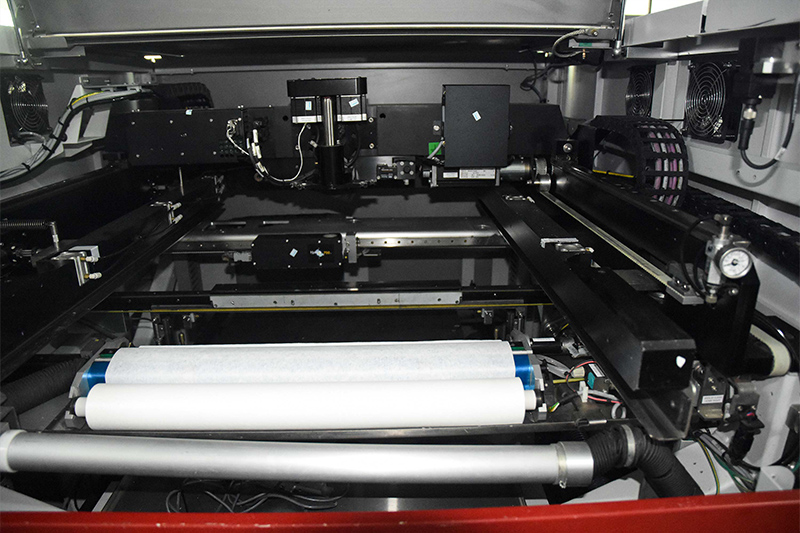

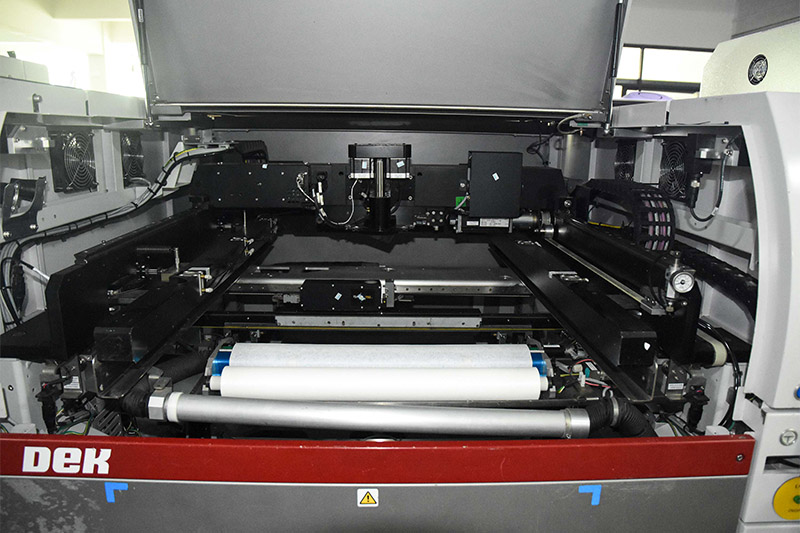

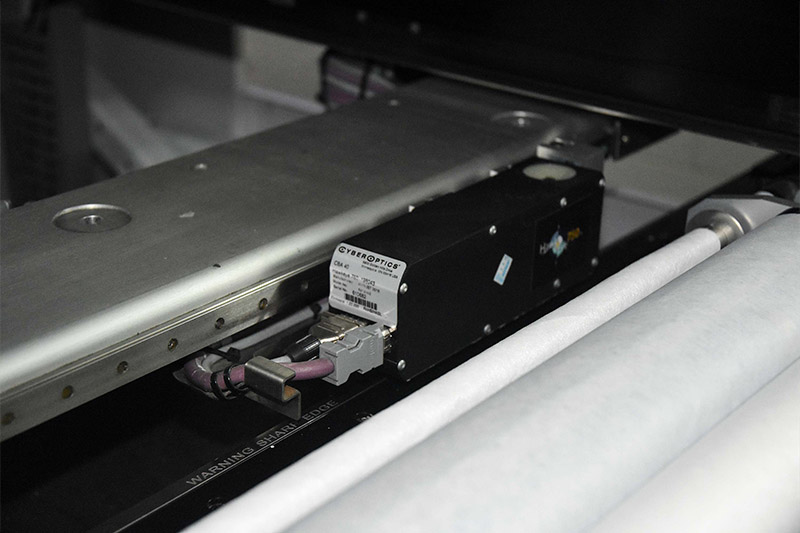

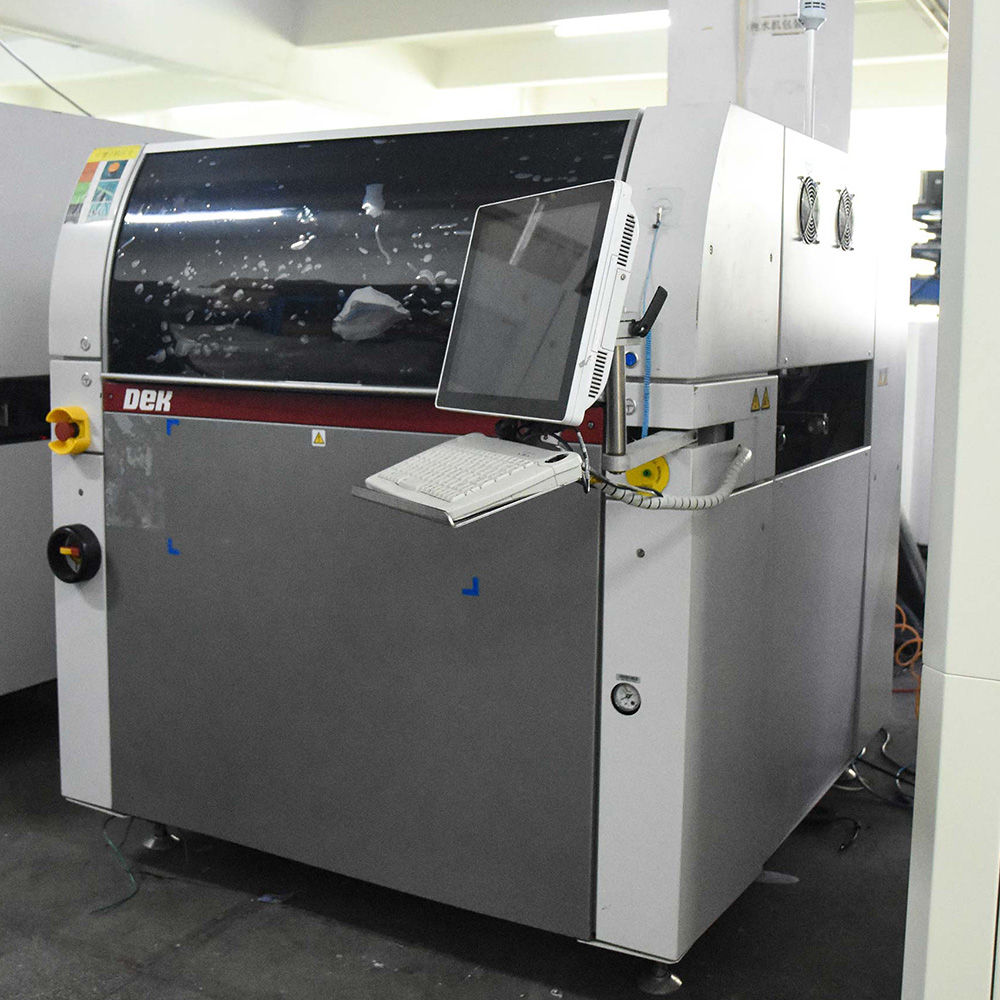

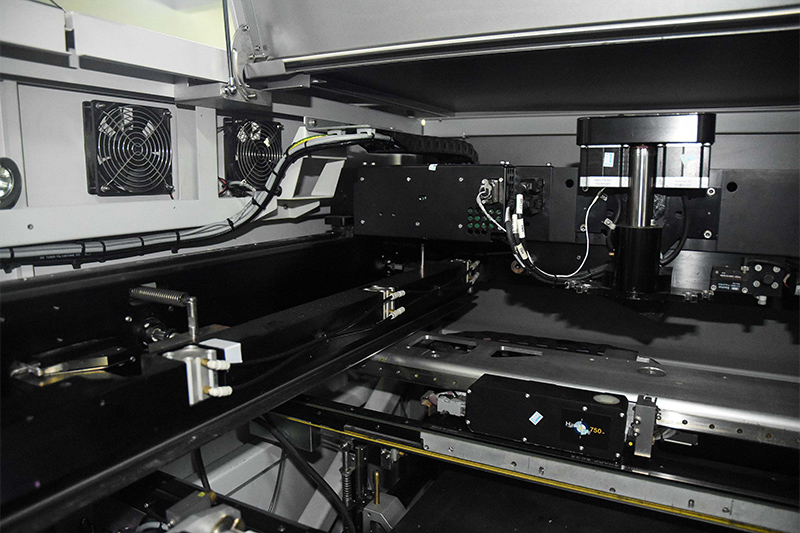

DEK Neo Horizon 03iX solder paste printer
DEK NeoHorizon Innovationsmorel
Best printing offering to cover all your needs
DEK NeoHorizon 03 iX:
Machine Alignment Capability: ±12.5 µm @ 2.0 cmk, (±6 Sigma)
System Alignment Capability: +/- 20μm @ 2.0 cmk, (±6 Sigma)
Wet Print Capability: ±25 µm @ 2.0 cpk, (±6 Sigma) - Certified by external system for every printer before delivery by standard
Core Cycle Time (CCT): 8 sec.
DEK NeoHorizon 01 iX:
Machine Alignment Capability: ±12.5 µm @ 2.0 cmk, (±6 Sigma)
System Alignment Capability: +/- 15μm @ 2.0 cmk, (±6 Sigma)
Wet Print Capability: ±20 µm @ 2.0 cpk, (±6 Sigma) - Certified by external system for every printer before delivery by standard
Core Cycle Time (CCT): 6.5 sec.
DEK NeoHorizon Back-to-Back:
The DEK NeoHorizon Back-to-Back setup offers higher print performance in dual-lane assembly line.
DEK NeoHorizon 03 iX:
Machine Alignment Capability: ±12.5 µm @ 2.0 cmk, (±6 Sigma)
System Alignment Capability: +/- 20μm @ 2.0 cmk, (±6 Sigma)
Wet Print Capability: ±25 µm @ 2.0 cpk, (±6 Sigma) - Certified by external system for every printer before delivery by standard
Core Cycle Time (CCT): 8 sec.
Perfect printing solution for best performance in high-mix production
Machine Alignment Capability: ±12.5 µm @ 2.0 cmk, (±6 Sigma)
System Alignment Capability: +/- 15μm @ 2.0 cmk, (±6 Sigma)
Wet Print Capability: ±20 µm @ 2.0 cpk, (±6 Sigma) - Certified by external system for every printer before delivery by standard
Core Cycle Time (CCT): 6.5 sec.
Best printing quality with maximum throughput
The DEK NeoHorizon Back-to-Back setup offers higher print performance in dual-lane assembly line.
DEK NeoHorizon Optionsmorel
DEK provides the industry’s most powerful and flexible printing platforms. The following retrofittable DEK options help you further improve productivity and print quality on your DEK NeoHorizon printer:
Full flexible DEK All Purpose Clamping (APC) system
High flexibility and maximum cleaning performance with DEK Typhoon Cleaner
DEK Grid-Lok: the universal board support system
DEK Paste Management: the best combination of automated paste dispensing with paste roll height control
Closed loop to SPI systems with ProDEK
DEK Multiple Alignment of Singulated Substrates (MASS) offers a solution for individual optical alignment at a very high speed to boost your throughput
Full flexible DEK All Purpose Clamping (APC) system
High flexibility and maximum cleaning performance with DEK Typhoon Cleaner
DEK Grid-Lok: the universal board support system
DEK Paste Management: the best combination of automated paste dispensing with paste roll height control
Closed loop to SPI systems with ProDEK
DEK Multiple Alignment of Singulated Substrates (MASS) offers a solution for individual optical alignment at a very high speed to boost your throughput
DEK03iX detailed parametersmorel
1.DEK03iX fully automatic solder paste printer has automatic, unassisted stencil bottom cleaning function, programmable control of dry, wet or vacuum cleaning, and free choice of cleaning interval. DEK03iX fully automatic solder paste printer can completely remove residual solder paste in the mesh to ensure printing quality.

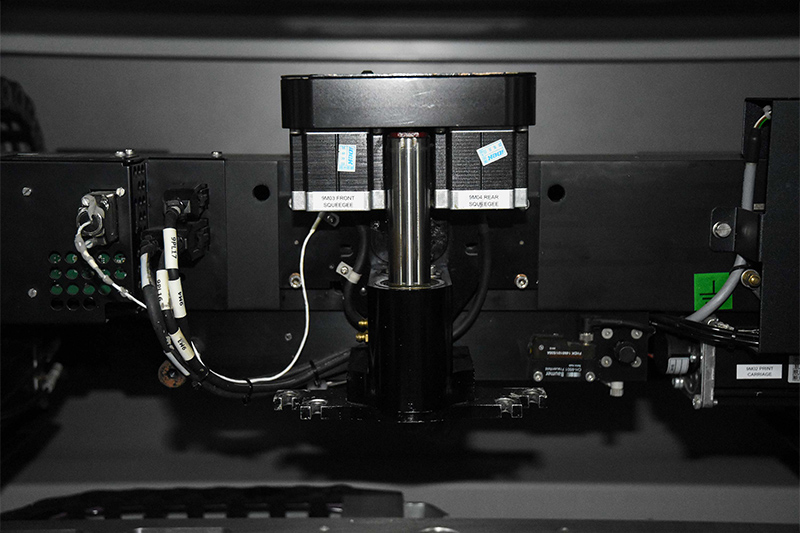

2.DEK 03iX has advanced up/down K-view visual system, independently controlled and adjusted lighting, high-speed moving lens, and accurate alignment of PCB printed circuit board and stencil, so that solder paste or red glue can be accurately applied to the printed circuit board according to the opening of the stencil. DEK Horizon 03iX fully automatic solder paste printer ensures printing accuracy of ±25 microns 6 sigma. High-precision servo motor drive and PC control ensure printing stability and precision, as well as image pattern recognition repeat positioning accuracy. The cantilever printing head has a specially designed high-rigidity structure. The scraper pressure, speed, and stroke are all controlled by a computer servo to maintain uniform and stable printing quality. The scraper beam has been specially optimized for structural design, making it lightweight and beautiful in appearance.
3. The multifunctional board handling device of the DEK03iX fully automatic solder paste printer can automatically position and clamp PCB boards of various sizes and thicknesses. It is equipped with a movable magnetic ejector and edge clamp device to effectively overcome the deformation of the board and ensure a uniform printing process. The DEK Horizon 4.03iX fully automatic solder paste printer has an InstinctivTMV9 operating interface and rich software functions. The DEK03iX fully automatic solder paste printer has a good human-computer dialogue environment, simple and convenient operation, easy to learn and easy to use. It has the function of self-diagnosis of faults, sound and light alarms, and prompts the cause of the fault. It can operate on both single-sided and double-sided PCB printed circuit boards.
2.DEK 03iX has advanced up/down K-view visual system, independently controlled and adjusted lighting, high-speed moving lens, and accurate alignment of PCB printed circuit board and stencil, so that solder paste or red glue can be accurately applied to the printed circuit board according to the opening of the stencil. DEK Horizon 03iX fully automatic solder paste printer ensures printing accuracy of ±25 microns 6 sigma. High-precision servo motor drive and PC control ensure printing stability and precision, as well as image pattern recognition repeat positioning accuracy. The cantilever printing head has a specially designed high-rigidity structure. The scraper pressure, speed, and stroke are all controlled by a computer servo to maintain uniform and stable printing quality. The scraper beam has been specially optimized for structural design, making it lightweight and beautiful in appearance.
3. The multifunctional board handling device of the DEK03iX fully automatic solder paste printer can automatically position and clamp PCB boards of various sizes and thicknesses. It is equipped with a movable magnetic ejector and edge clamp device to effectively overcome the deformation of the board and ensure a uniform printing process. The DEK Horizon 4.03iX fully automatic solder paste printer has an InstinctivTMV9 operating interface and rich software functions. The DEK03iX fully automatic solder paste printer has a good human-computer dialogue environment, simple and convenient operation, easy to learn and easy to use. It has the function of self-diagnosis of faults, sound and light alarms, and prompts the cause of the fault. It can operate on both single-sided and double-sided PCB printed circuit boards.
