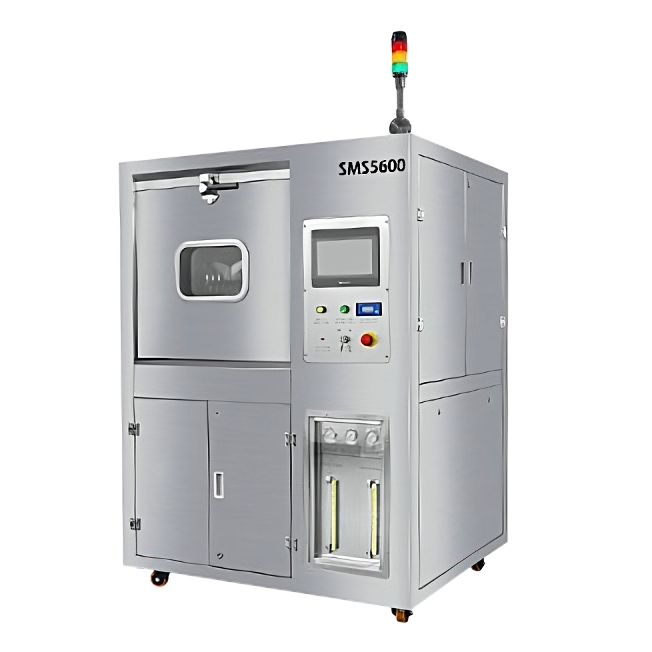

Fully automatic PCBA cleaning machine-SMS-5600

1. Comprehensive Cleaning Capabilities
The machine offers comprehensive cleaning to thoroughly remove residual rosin flux, water-soluble flux, no-clean flux, solder paste, and other organic and inorganic pollutants from the surface of the PCB after soldering. It is particularly suitable for cleaning small batches and multi-variety PCBA, offering versatile cleaning solutions for various production needs.
2. Dual-Layer Cleaning Basket and Observation Features
The cleaning system features a double-layer cleaning basket with the capacity to load PCBA layer by layer, each with a size of 610mm(L) x 560mm(W) x 100mm(H), totaling two layers. The cleaning room is equipped with a visual window, allowing users to observe the cleaning process in real time, ensuring transparency and monitoring.
3. User-Friendly Interface and Efficient Operation
The machine features a simple Chinese-language operation interface, allowing users to quickly set the cleaning process parameters. The cleaning program can be stored for future use, and a hierarchical management password system can be set according to administrator authority, enhancing ease of use and security.
4. Enhanced Cleaning Efficiency and Solution Recycling
The heating temperature control system allows the washing liquid to be heated to an optimal temperature based on the chemical characteristics of the solution, improving cleaning efficiency and reducing cleaning time. Additionally, a built-in filter device enables the recycling of the cleaning solution, and compressed air is used to recover residual liquid from the pipeline and pump, effectively saving up to 50% of the cleaning solution.
5. Durable Construction and High-Quality Standards
The machine's structure is made of 304 stainless steel, offering exceptional durability and resistance to acid and alkali cleaning liquid corrosion. It also features a real-time resistivity monitoring system with a conductivity control range of 0~18MΩ. The system ensures multiple DI water rinsing stages, achieving high cleanliness standards and ion pollution levels that meet the IPC-610D Class I standard.
