PCB Assembly Solution

Feature
▶Direct Mounting Machine Double Track (686mm track width)
▶Independent engraving mode: two tracks of AB can be engraving with different machines at the same time
▶Independent transmission board, transmission time is 0
▶Double track PCB size: 450*250mm
   Monorail PCB size: 450*450mm

Three-axis (X, Y, and Z) motion control ensures precise positioning of the spray nozzle for targeted application on various circuit boards.

This eliminates overspray and minimizes coating on undesired areas like connectors, reducing waste and ensuring functional integrity.

A Soldering Robot is a fully automated system that performs a designated task, set by a custom program, with the utmost precision and repeatability. Each joint may have its own soldering profile. Base robots use our 150 watt power supply with a superior thermal feedback system.

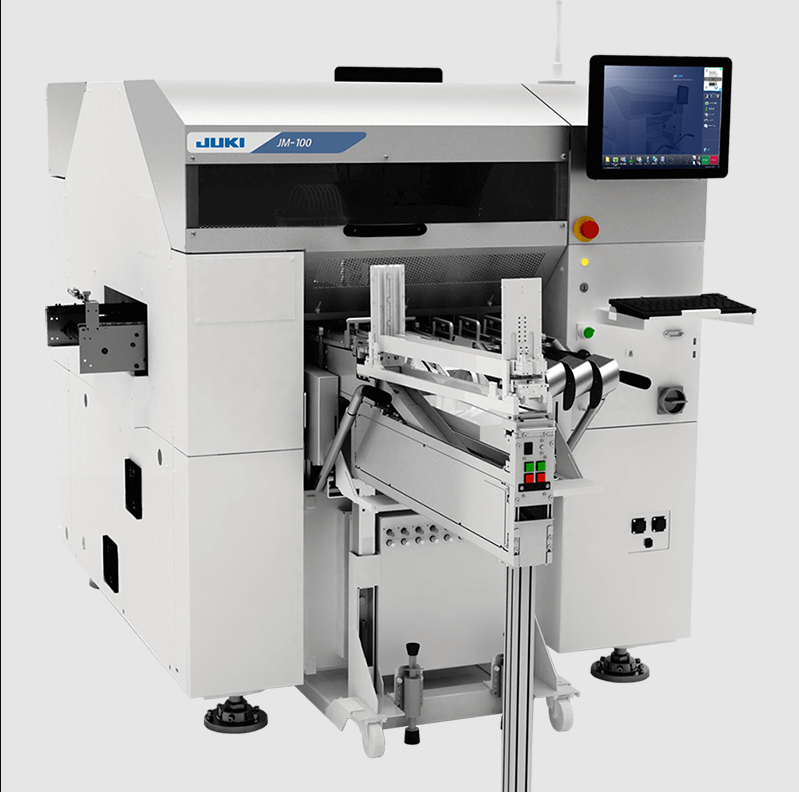

Features
▶Best in class speed.
▶Component insertion time down to 0.6 seconds for vacuum nozzle and 0.8 seconds for gripper nozzle.
▶New “Takumi head” with multiple recognition heights
▶Component Feeding
▶Line control using JaNets software

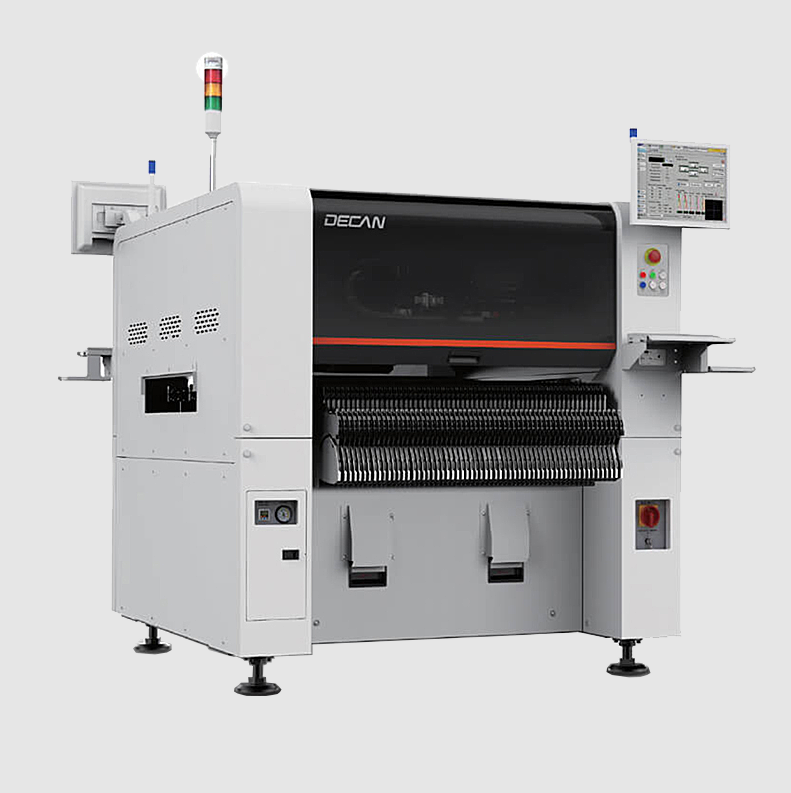

Hanwha Decan S2 Flexible Mounter is a high speed SMT Machine capable of placing 03015 components and highly accurate, taking on the task of today's demanding and ever changing technology.

Optimum Placement rate of 92'000cph!!!

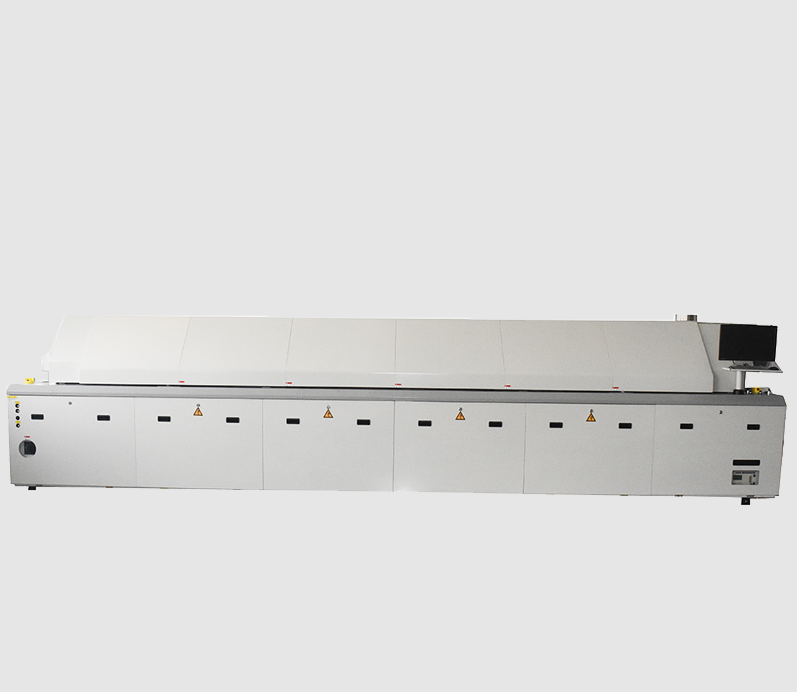

In SMT reflow systems the heat transfer takes place by full convection. Heated process gas (air, nitrogen) is guided on the products by nozzle plates. The resulting temperature profile has to be conform with guidelines of component and solder paste manufacturer.

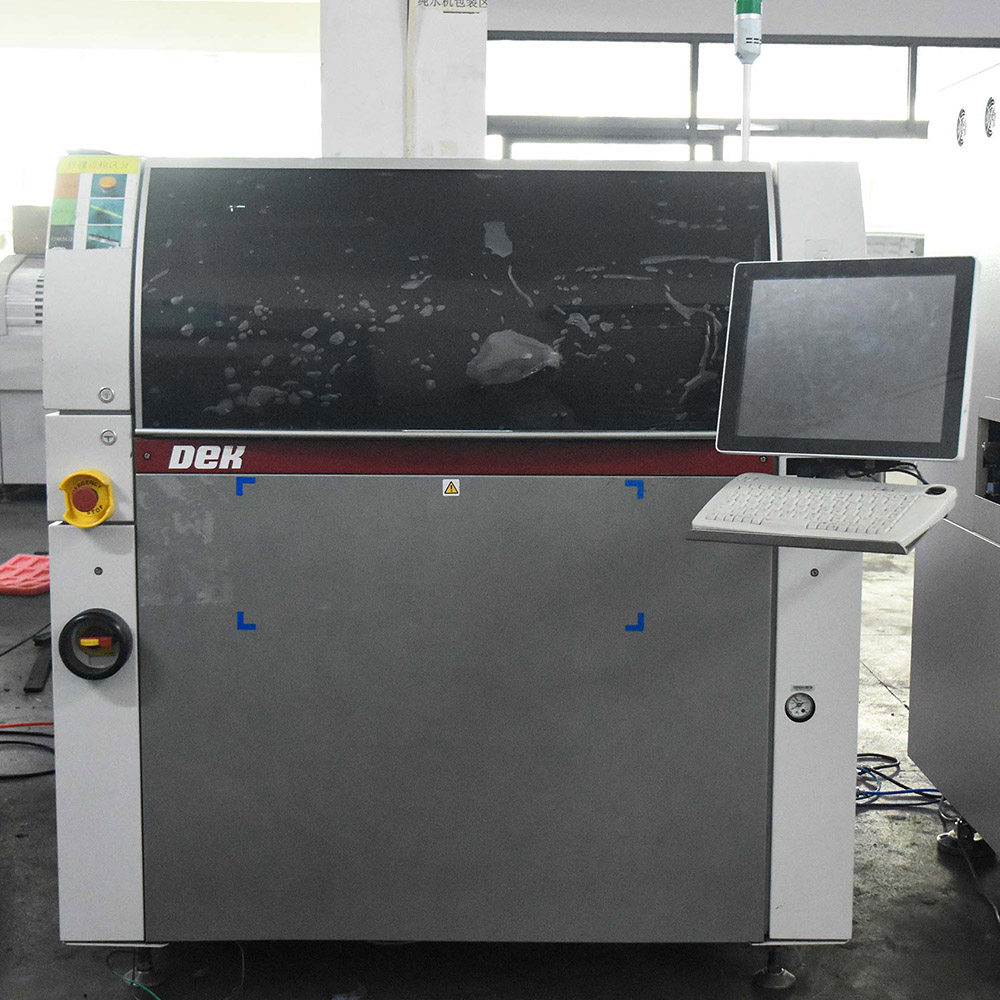

The DEK Neo Horizon 03iX shines with more than a new design. It's modular the interior is much improved and highly reliable Whether in high-mix contract manufacturing or high-volume applications with high throughput requirements - the DEK Neo Horizon 03iX is the right printing platform.

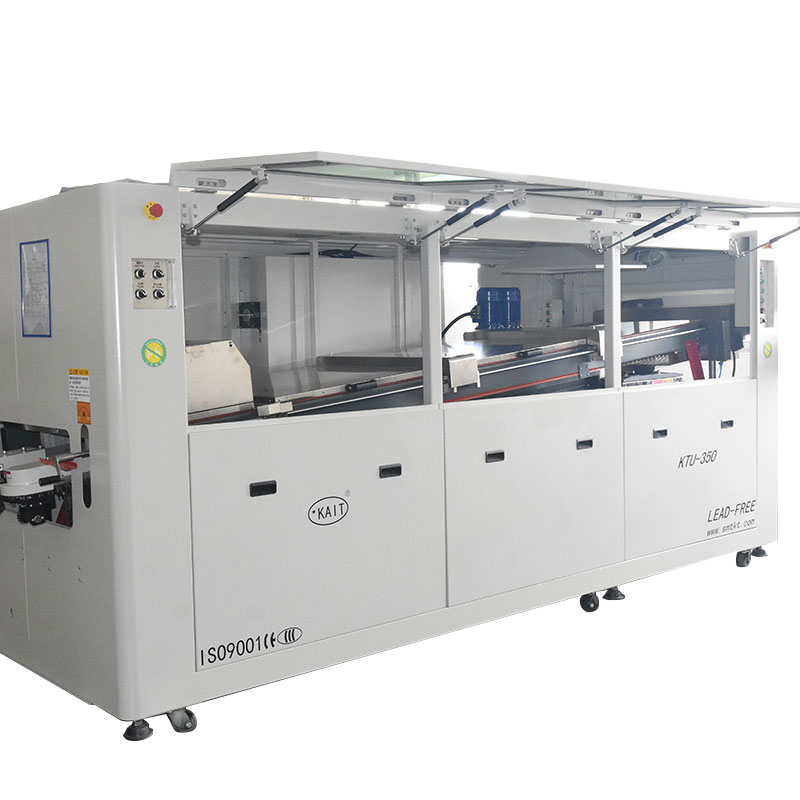

Electricity-saving: this wave soldering machine is steady, efficient,energy-saving,environmental and safe.
Temperature mutual compensation, energy saving is the highlight of this machine, the power consumption is 90% of similar equipment (save 10% power)
Space-saving:  the length of the THT line with normal wave solderingmachine is around 35m, takes around 186.9 square meter; with this energy-saving dual lane wave soldering machine, the space is around 65.45 squre meter,it saves a space up to 121.45 square meter.
