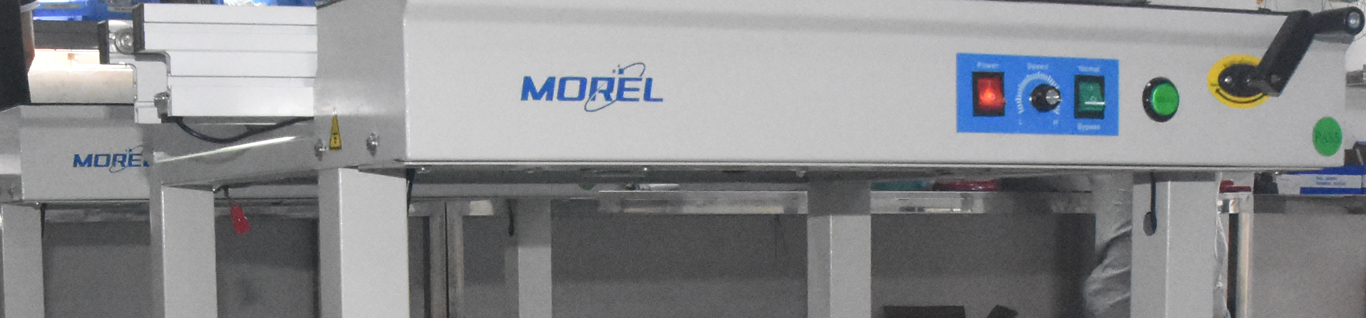

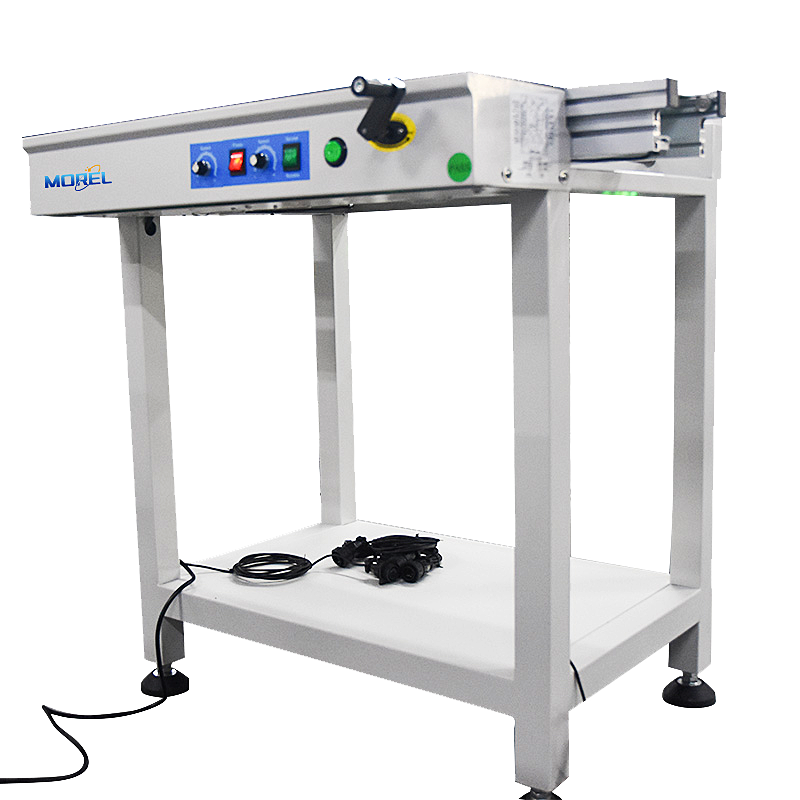

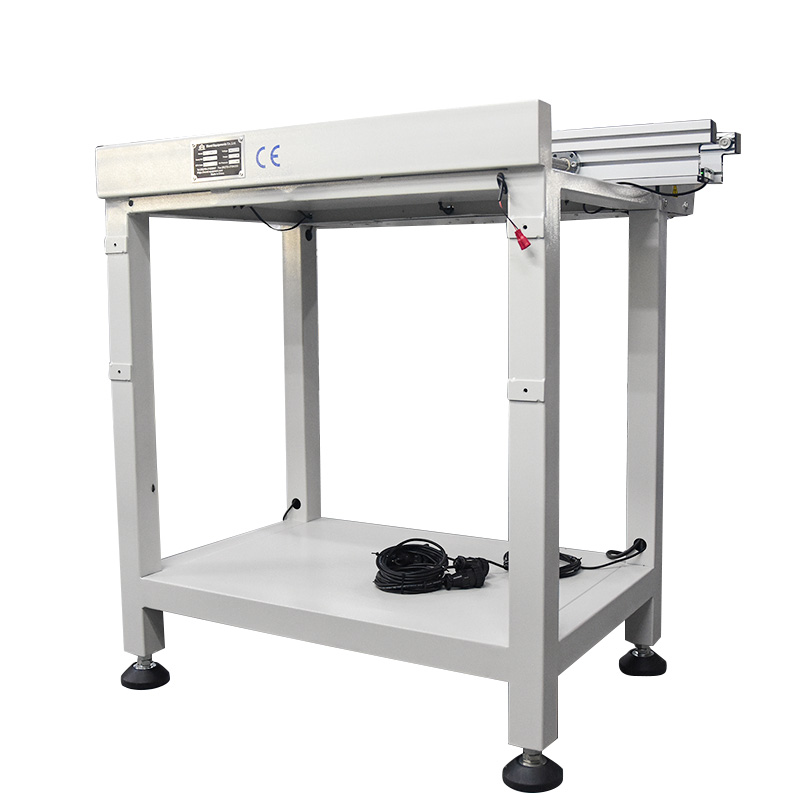

SMT Dual Lane PCB Conveyor With PLC
SMT Dual Lane PCB Conveyor With PLCmorel

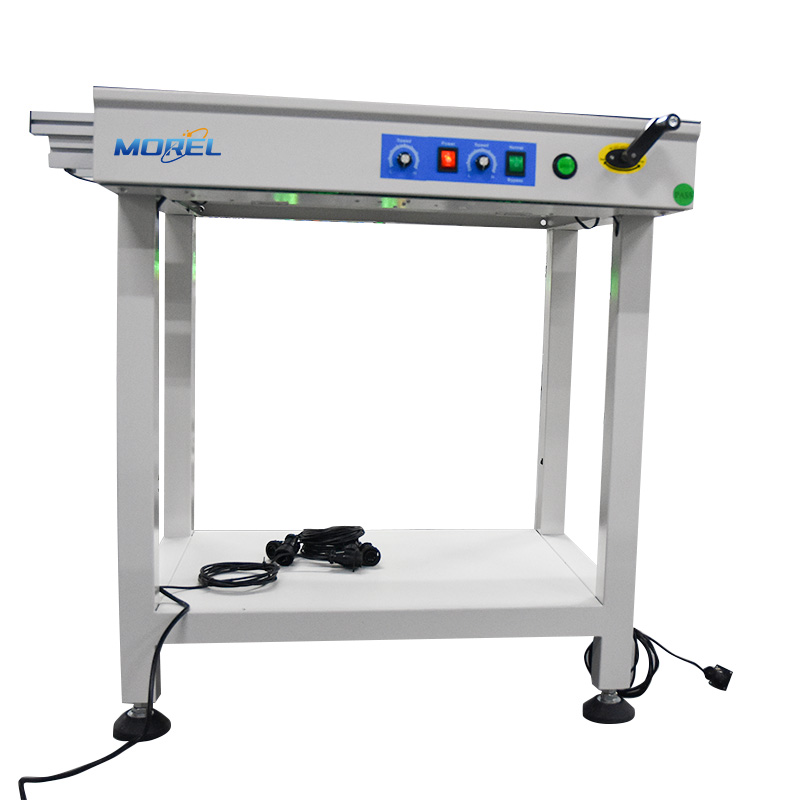

What is PCB conveyor?
PCB handling with transport conveyors. A transporting PCB conveyor is the perfect way of transporting your PCB's from one SMT machine to the next. PCB assembly transport conveyors are found in all assembly lines.

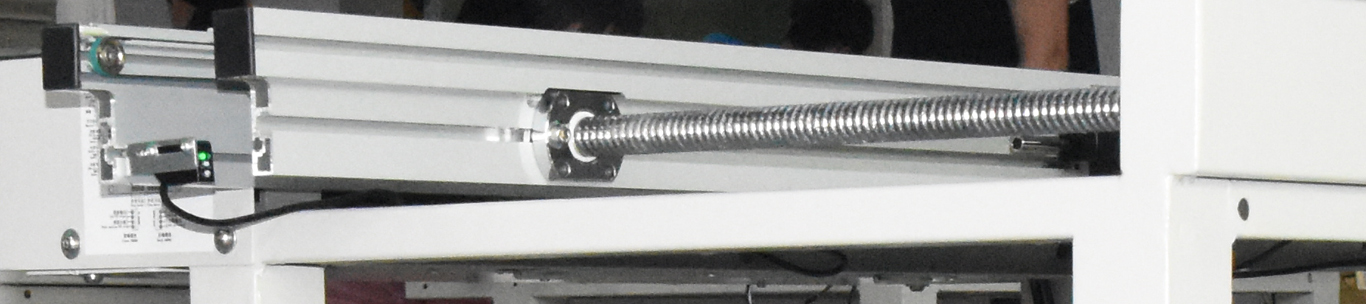

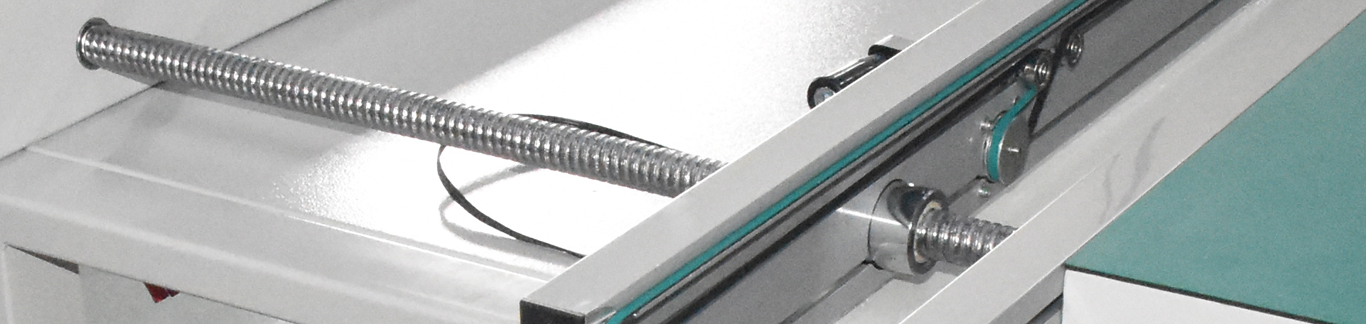

▶Precision screw width adjustment, to ensure that the transport guide rail parallel to each other
▶Adopt flat belt and special thickened aluminum profile guide rail to ensure smooth connection and stable transportation

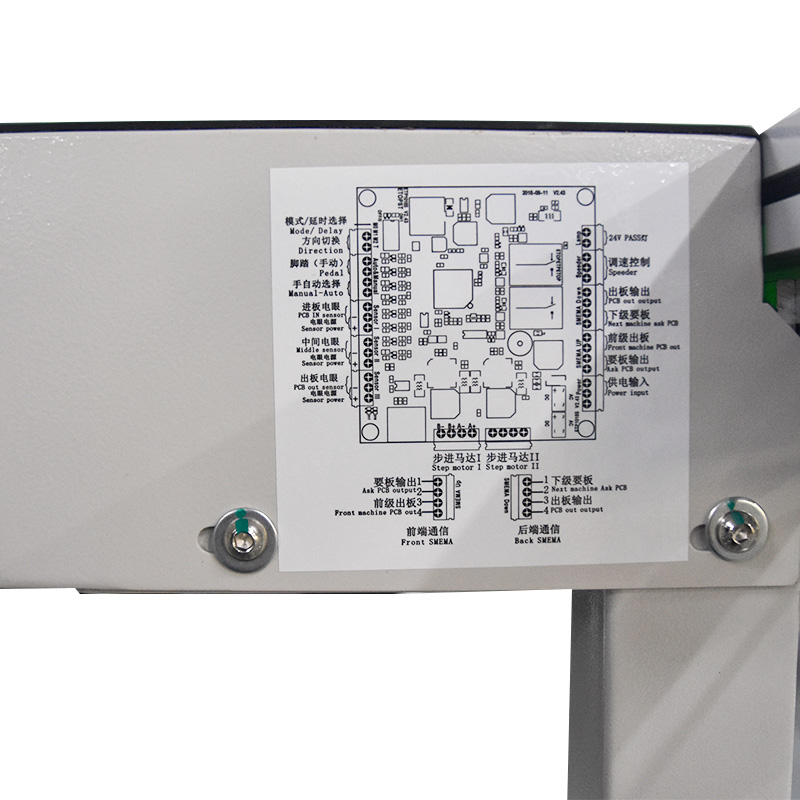

▶standard equipped with signal line, can be connected with other equipment online transmission board
▶according to customer requirements to make the length of the guide rail is different
▶The transmission motor adopts adjustable lengthening stepper motor
▶Photoelectric switch using Hufeng round photoelectric, durable
▶Flat belt transmission wheel adopts double bearing drive, transmission is stable, does not hurt the belt,
▶Both ends of the guide rail of the connecting platform are processed into eight-figure shape into PCB, so that PCB can enter and exit the connecting platform smoothly without jitter
▶Adjust the width of the double screw
▶Double track independent control, convenient operation
PCB handling with transport conveyors. A transporting PCB conveyor is the perfect way of transporting your PCB's from one SMT machine to the next. PCB assembly transport conveyors are found in all assembly lines.
▶Precision screw width adjustment, to ensure that the transport guide rail parallel to each other
▶Adopt flat belt and special thickened aluminum profile guide rail to ensure smooth connection and stable transportation

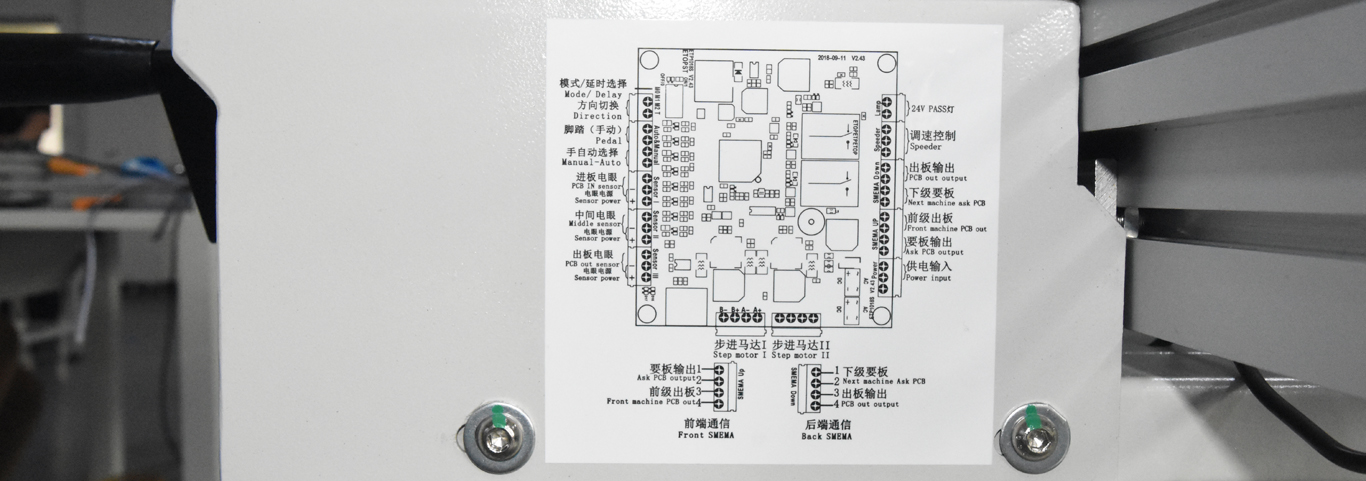

▶standard equipped with signal line, can be connected with other equipment online transmission board
▶according to customer requirements to make the length of the guide rail is different
▶The transmission motor adopts adjustable lengthening stepper motor
▶Photoelectric switch using Hufeng round photoelectric, durable
▶Flat belt transmission wheel adopts double bearing drive, transmission is stable, does not hurt the belt,
▶Both ends of the guide rail of the connecting platform are processed into eight-figure shape into PCB, so that PCB can enter and exit the connecting platform smoothly without jitter
▶Adjust the width of the double screw
▶Double track independent control, convenient operation
|
Specification /Type |
*BC-100M-N |
BC-100L-N |
BC-100X-N |
|
Power supply |
AC 220V /50/60Hz |
||
|
PCB Size (mm) |
460x50 ~350 |
535x50~400 |
535x50~460 |
|
PCB Direction |
Left to Right (Optional Right to Left) |
||
|
Transport Height(mm) |
900 ±20 |
||
|
Transmission Speed |
Adjustable from 1m/Min to 12m/Min |
||
|
Track Fixed Side |
Front side fixed (optional back side fixed) |
||
|
Main Motor Power |
15 |
||
|
Machine Size (L x W x H(mm) ) |
1000x665x920 |
1000x735x920 |
1000x800x920 |
|
Gross Weight (Kg) |
50kg |
55kg |
75kg |
|
Optional Type |
With 1、Light type 2、Fan type 3、Magnifier type 4、 Cover 5、Inspection Platform |
||
|
On Belt type |
4mm Flat type (Optional Round belt) |
||
|
Commonly Conveyor lengths |
0.5M, 0.6M, 0.8M, 1M, 1.2M, 1.5M |
||
