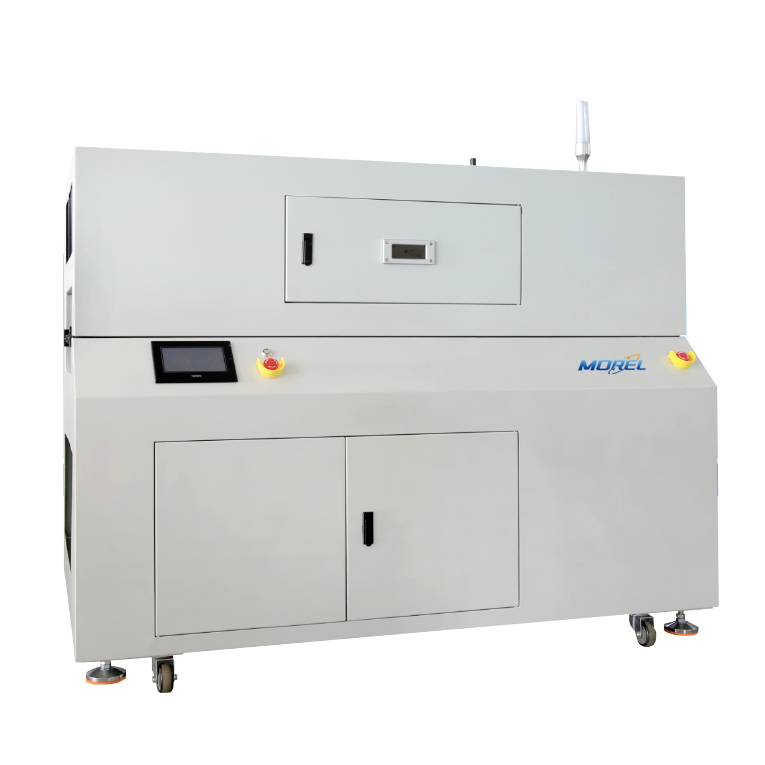

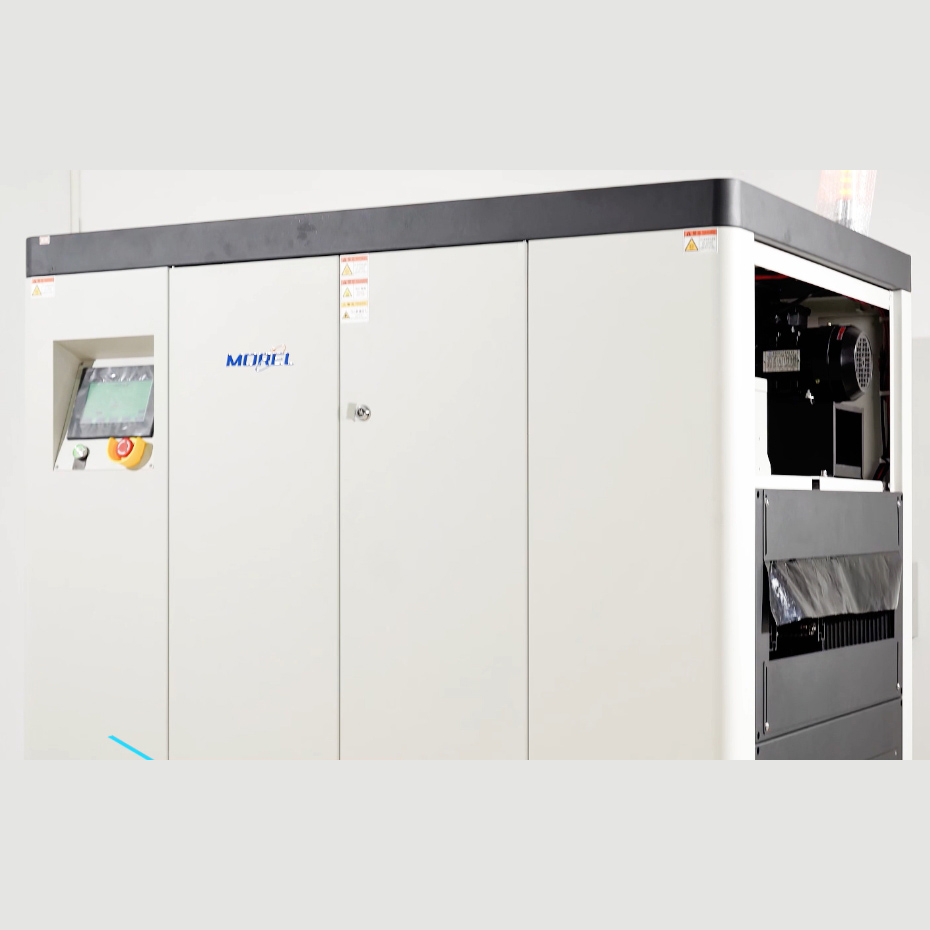

UV Curing Oven MOV-450 For PCBA
UV Curing Oven MOV-450 For PCBAmorel

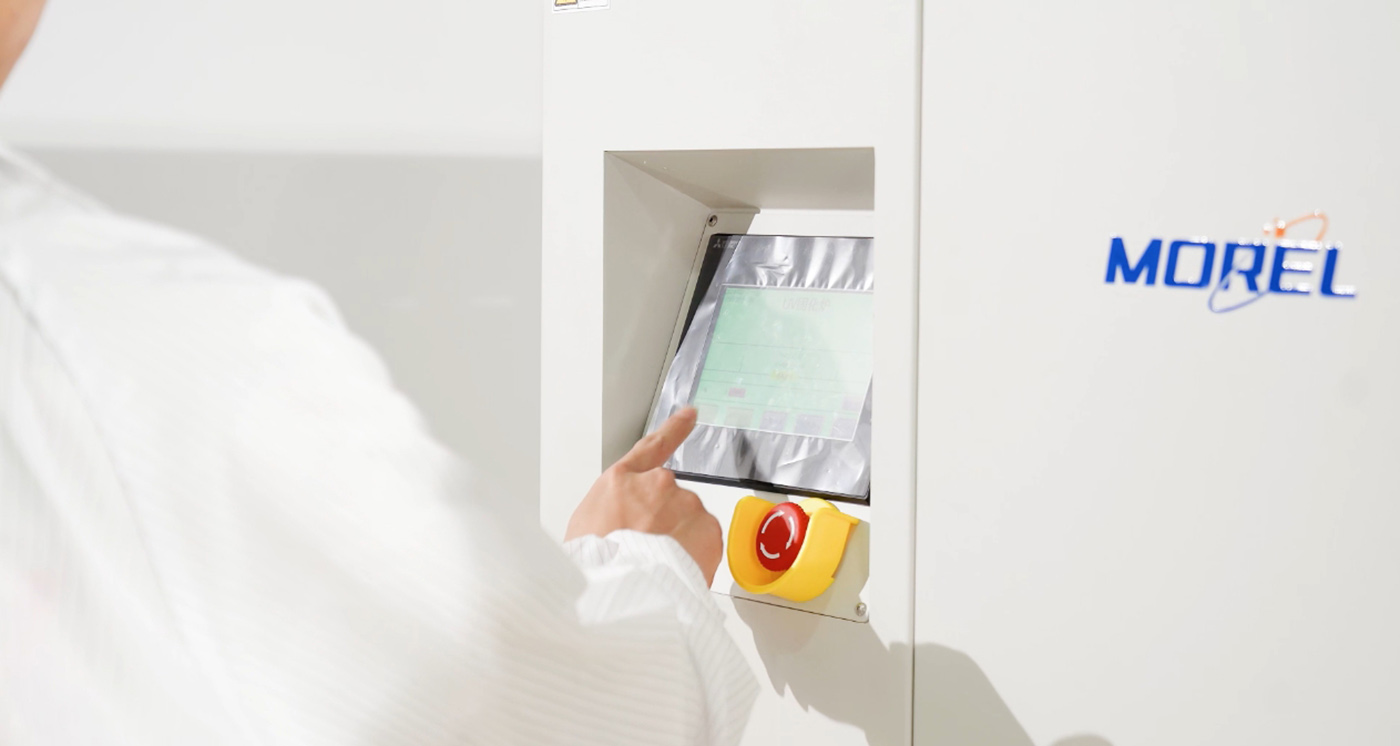

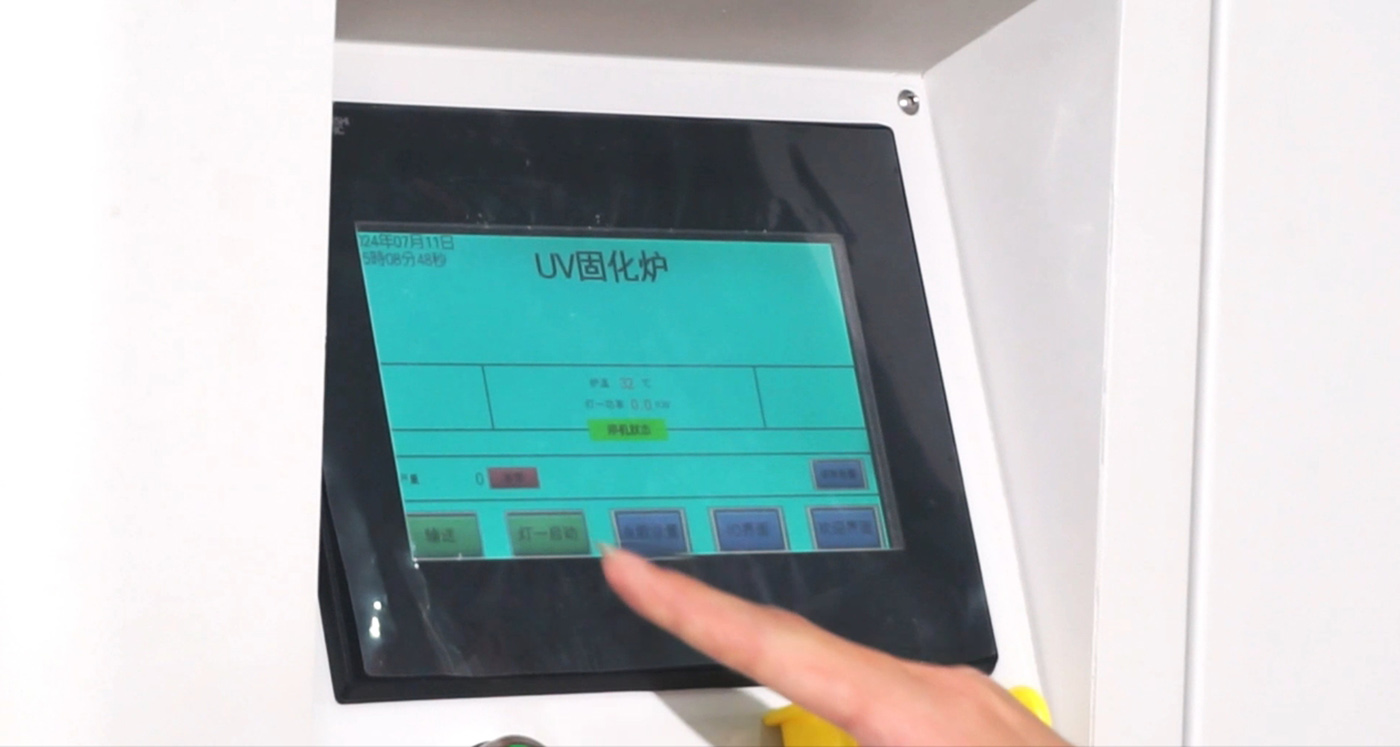

1.PCL+ touch screen control, with independent temperature controller alarm, double over temperature protection.

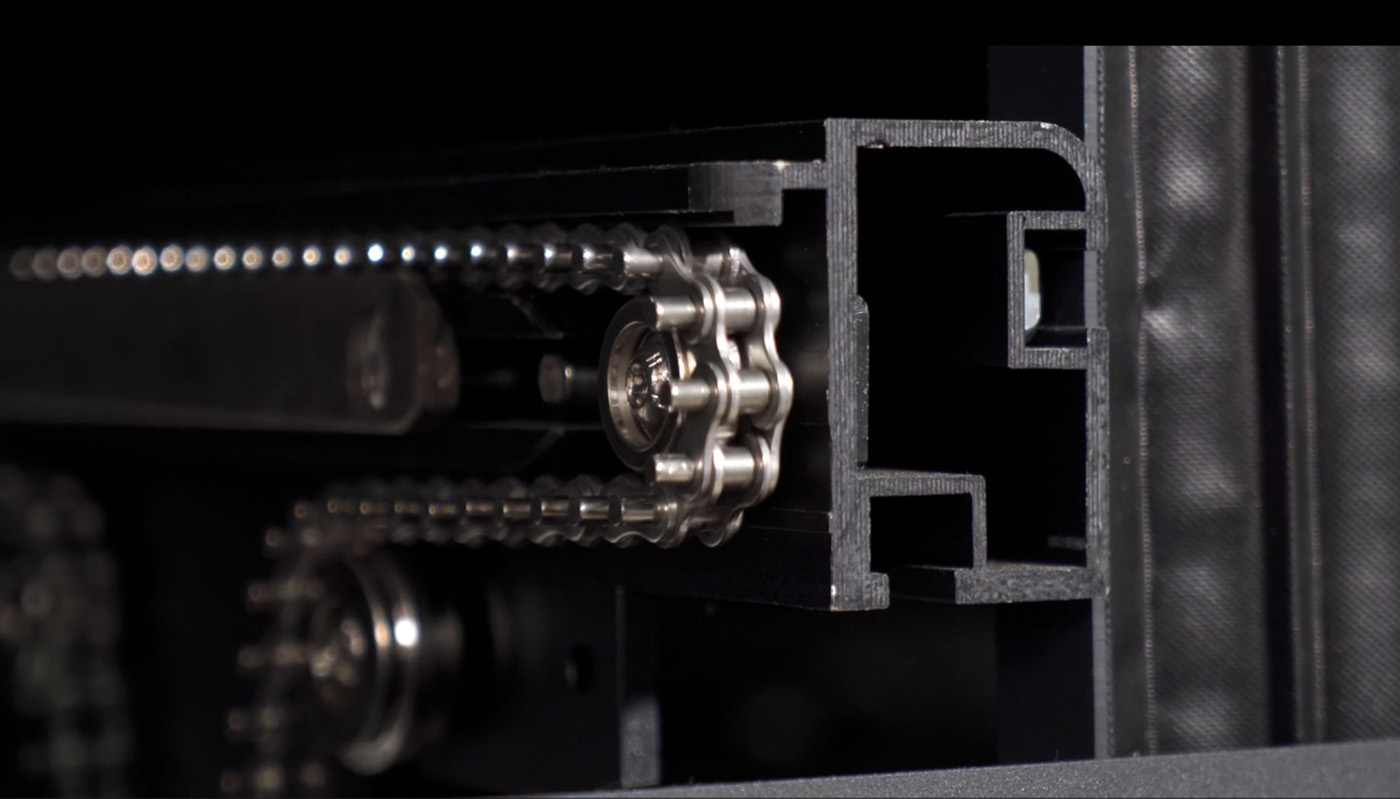

2.Stainless steel chain conveyor, the effective width is 50-450mm, the width can be adjusted. automatically, the conveying speed can baselessly regulated by the touch screen, and the conveying drive mode is driven by stepper motor.
3.The equipment has the function of detecting the entrance and exit board, and the number and conveying condition of the inner board of the equipment can be observed at any time.

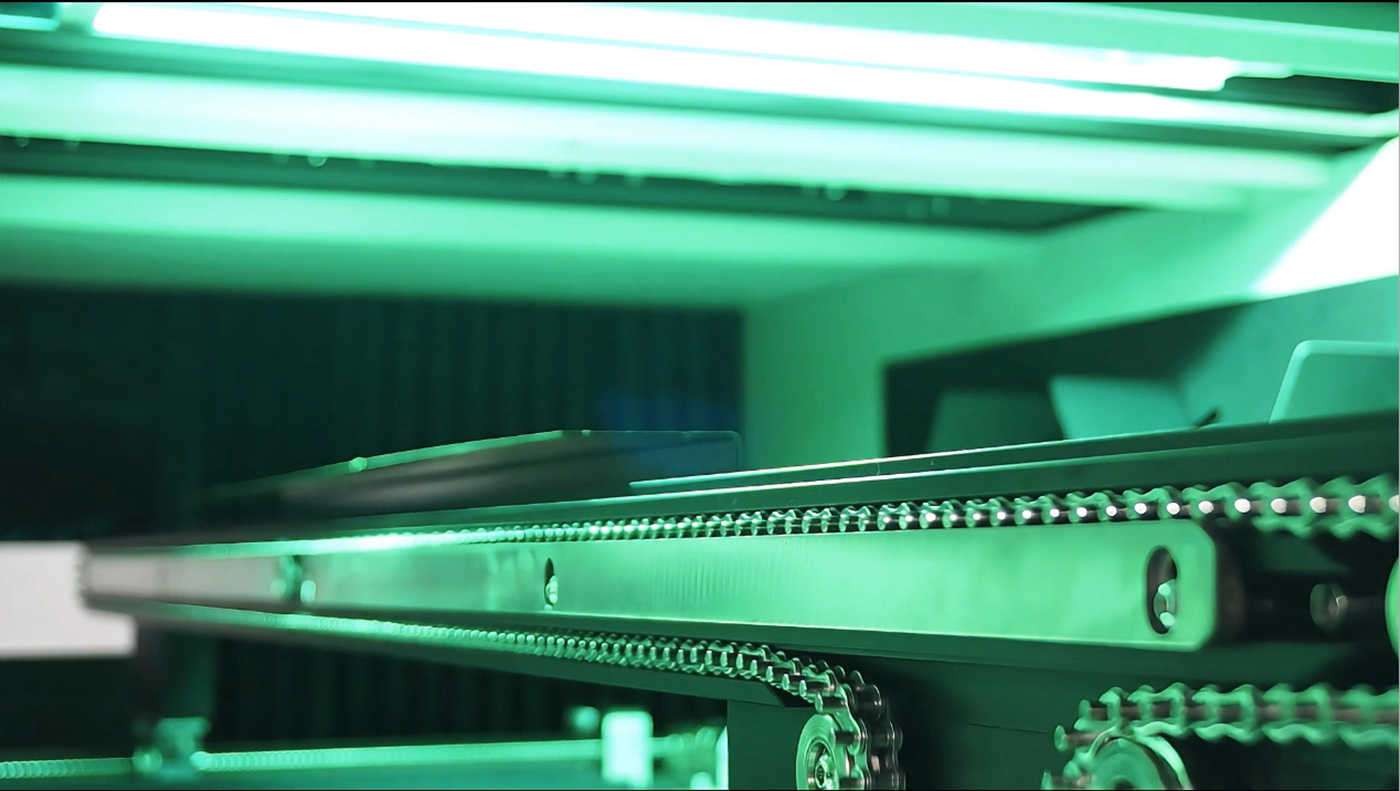

4.Hand-operated lamp lifting method, the device automatically lifts and opens the cover function; The device carries two sets of electronic dimming light sources at the same time. and the UV light intensity can be adjusted infinitely.
2.Stainless steel chain conveyor, the effective width is 50-450mm, the width can be adjusted. automatically, the conveying speed can baselessly regulated by the touch screen, and the conveying drive mode is driven by stepper motor.
3.The equipment has the function of detecting the entrance and exit board, and the number and conveying condition of the inner board of the equipment can be observed at any time.
4.Hand-operated lamp lifting method, the device automatically lifts and opens the cover function; The device carries two sets of electronic dimming light sources at the same time. and the UV light intensity can be adjusted infinitely.
|
Dimensions L*W*H |
L:1500*W:1080H:1500(mm) |
Temperature adjustment rang |
UVA、UVBIUVC Full band |
|
Weight |
Approx.490kg |
Heating time |
< <5minutes |
|
PCB transfer height |
92020mm |
PCB board size |
MAX:W450mm*L450mm |
|
Transportation speed |
0-3500mm/min |
PCB board component board heial |
MAX:士100mm |
|
I ransfer direction |
L-R(R-L) |
Opening method |
Pneumatic lifting |
|
Transmission motor |
tepper motor + gearbox |
Control method |
Touch screen control |
|
Deliveny method |
Chain conveyor (35B5 mm long pin stainless steel chain） |
Power supply |
AC380V 50HZ Three-phase five-wire system |
|
Number of temperature zones |
1 |
Total power |
7KW 14A |
