How to Choose a Surface Mount Pick and Place Machine
Choosing a Surface Mount Pick and Place machine is a production decision, not a race for maximum placement speed. IPC’s 2024 Electronics Industry Demand and Supply Report highlights uneven demand, inventory pressure, and continuing reliability concerns across electronics manufacturing. These conditions make flexibility increasingly valuable. A machine that changes products quickly may outperform a faster machine during frequent low-volume runs.
Look closely at the feeder interface, nozzle range, vision system, component library, and software traceability. Ask for a live demonstration using your smallest resistor, largest connector, and most delicate package. Watch the operator load feeders. Count the minutes lost during changeover. Speed is not everything. Placement accuracy, feeder stability, service access, and verified uptime often shape the real cost per board.
Michael Ford, an electronics manufacturing specialist and former Aegis Software executive, offers a useful practical warning: “The best machine is not necessarily the fastest; it is the one that fits the process and controls variation.” That principle supports a broader review of industry evidence, including IPC benchmarking guidance and SEMI equipment-market reports. However, published reports can hide your factory’s specific constraints. A machine rated for 60,000 components per hour may slow sharply with mixed boards, odd-shaped parts, or frequent feeder changes. That detail is easy to miss.
Experience should guide the shortlist, while measured trials should guide the purchase. Consider technical support, spare-parts availability, training, and upgrade paths before signing. The cheapest quotation may become expensive beside an idle line, frustrated operators, and delayed shipments. A careful choice begins with your actual board mix, not a brochure headline.
Define Production Requirements and Component Placement Needs

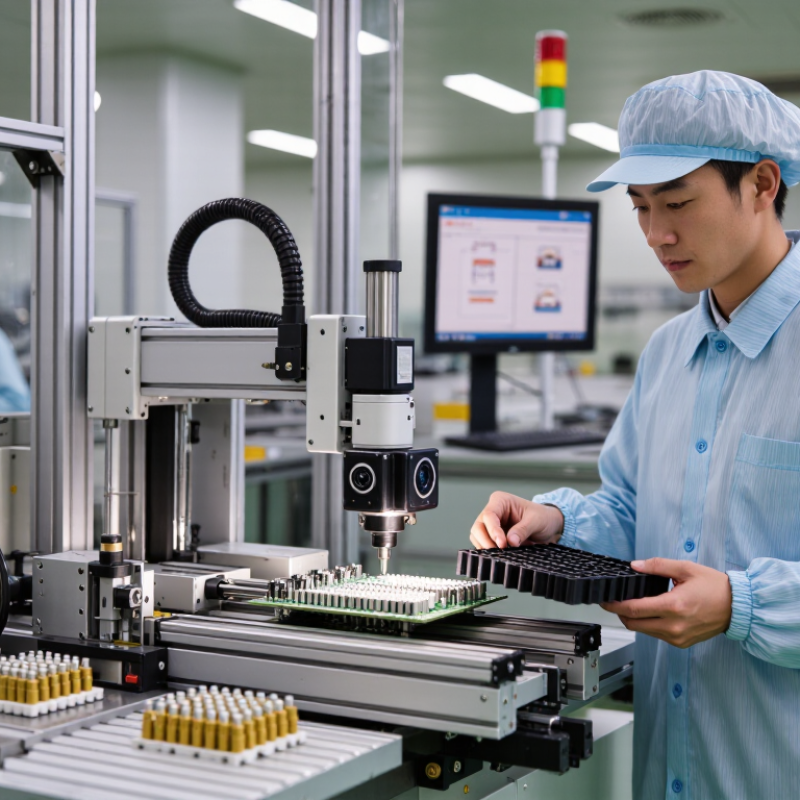

How to Choose a Surface Mount Pick and Place Machine
Define production requirements before comparing machine specifications. In factory planning, I begin with monthly board volume, shift patterns, and expected growth. Measure it first. A machine for 500 boards monthly may not suit 5,000 boards. Record PCB length, width, thickness, and maximum panel weight. Also note required feeders, component reels, trays, and changeover frequency. These details reveal whether speed or flexibility matters more.
Component placement needs deserve equal attention. List every package type, from tiny passive parts to fine-pitch integrated circuits. Record the smallest component, largest component, lead spacing, and placement tolerance. Small parts matter. A high-speed system may perform well with common packages but struggle with unusual shapes or tall components. Check nozzle options, vision accuracy, and placement height limits. Confirm that software can manage your actual CAD and production data. Do not rely only on advertised placement rates.
I once saw a line planned around peak speed, while operators lost hours during feeder changes. That assumption fails. Calculate practical output after setup, replenishment, inspection, and minor stoppages. Ask for sample-board trials using your real components. Review placement accuracy across repeated runs, not one successful test. Document errors and operator feedback. A slightly slower machine may deliver better uptime and fewer rework cycles. Leave room for new package types, because production rarely stays unchanged.
Compare Machine Types, Speed, Accuracy, and Placement Capacity
Choosing a surface mount pick and place machine starts with production reality, not brochure speed. A high-speed chip shooter suits large runs with many small resistors. A flexible placement machine handles mixed boards, connectors, and irregular components better. Modular platforms can combine both roles. Mordor Intelligence’s 2024 SMT Equipment Market study forecasts annual growth above 8% through 2029, reflecting demand for adaptable production lines.
Speed figures need careful reading. Manufacturers often quote placements per hour under ideal feeder and component conditions. Actual output falls when boards require frequent nozzle changes, vision checks, or component replenishment. Measure completed boards per hour instead. Accuracy matters more on fine-pitch packages. IPC-9850A provides a recognized method for testing placement accuracy and repeatability. For demanding assemblies, request test results at the intended component range, not only the machine’s best result.
Capacity includes feeder positions, nozzle storage, board dimensions, component height, and software limits. A machine with 120 feeder slots may still struggle with a board needing unusual parts. Review the last three months of bills of materials. Count unique components, package sizes, and changeover frequency. A 2024 report from Precedence Research places the global electronics manufacturing equipment market on a strong growth path, but market growth does not guarantee good line utilization. I would choose slightly lower speed if it reduces changeovers and feeder errors. That choice is less exciting. It may be more profitable.
Evaluate Feeder Systems, Software, and Board Compatibility
Choosing a surface mount pick and place machine starts with feeder control, not headline placement speed. In production trials, I have learned that a feeder that loads quickly can still create costly stoppages. Check feeder pitch, component range, splice detection, and verification sensors. A clear location map matters when operators refill 0402 resistors beside larger connectors.
According to SEMI’s 2024 World Fab Forecast, semiconductor manufacturing equipment spending was projected to reach 112.8 billion dollars in 2025. That scale increases pressure on assembly teams to reduce downtime and improve traceability.
Software should display feeder status, component verification, nozzle condition, and placement errors without hiding important details. Look for offline programming, barcode control, and exportable production records. IPC’s standards emphasize process control and documented inspection, so software should support those practices rather than operate as a closed dashboard.
Compatibility deserves equal attention. Confirm board length, width, thickness, warpage limits, conveyor clearance, and maximum component height.
A dense board may need flexible head movement around tall capacitors.
Test the machine with your actual boards. Do not rely only on a supplier’s sample cycle. Compare changeover time, first-pass yield, feeder recovery, and error correction. A useful trial includes mixed packages, fine-pitch parts, and a partly loaded feeder bank.
My own evaluation mistake was focusing too heavily on hourly placements. The faster machine performed worse when feeder replenishment was awkward. That result still deserves reflection.
Production evidence should outweigh attractive specifications.
Assess Machine Footprint, Maintenance, Training, and Support
How to Choose a Surface Mount Pick and Place Machine
A machine’s footprint includes more than its steel frame. Measure feeder access, operator clearance, service doors, and material flow. Measure the aisle. A compact system can still create congestion when reels, carts, and inspection equipment share one narrow path. During site evaluations, mark the machine outline with tape and simulate feeder replacement. This often reveals wasted space before installation. Also check floor loading, electrical capacity, ventilation, and future expansion. A smaller machine is not automatically the better investment.
Maintenance planning should begin before purchasing. Ask how quickly common feeders, nozzles, cameras, and belts can be replaced. The U.S. Department of Energy’s Operations and Maintenance Best Practices Guide reports potential savings of 12–18% through preventive maintenance compared with reactive repairs. Request service intervals, spare-parts availability, diagnostic access, and realistic response times. Training deserves equal attention. The U.S. Bureau of Labor Statistics projects 15% employment growth for industrial machinery mechanics from 2023 to 2033, increasing pressure on skilled technicians. Choose structured operator training, maintenance certification, remote assistance, and documented troubleshooting procedures. Support matters. A machine may run accurately during acceptance testing, yet performance can decline when training is rushed or local expertise is limited. I would question any proposal promising zero downtime; that expectation is convenient, but rarely realistic.
How to Choose a Surface Mount Pick and Place Machine
Compare typical planning requirements for desktop, modular, and production-class machines. Lower footprint, maintenance hours, and training time generally simplify deployment, while faster support response can reduce production risk.
The figures are non-brand-specific planning benchmarks. Actual requirements vary with feeder count, placement speed, product mix, service contract, operator experience, and factory layout. Confirm specifications before purchasing.
Calculate Total Ownership Cost and Select the Best-Fit Machine
Choosing a surface mount pick and place machine begins with total ownership cost, not its purchase price. Calculate the five-year cost per good board: purchase, feeders, software, installation, training, maintenance, utilities, downtime, and resale value. SEMI’s World Fab Forecast 2024 projects semiconductor capacity growth of 6% in 2024 and 7% in 2025. That pressure makes throughput valuable, but only when the machine matches your product mix.
For example, a machine costing $180,000 may require $25,000 for feeders, $15,000 for installation and training, and $60,000 for five years of maintenance. Add $10,000 for electricity and $40,000 for planned downtime. The estimated ownership cost reaches $330,000. Producing one million good boards creates a cost of $0.33 per board. Compare that figure with a cheaper machine, not its sticker price.
Utilities
deserve attention. The U.S. Department of Energy reports that compressed-air leaks can waste 20–30% of compressor output. A machine with higher air demand can quietly increase factory expenses. Check power, air pressure, feeder capacity, changeover time, and service response. IPC industry reports continue to identify labor availability and supply-chain volatility as major manufacturing concerns. Automation can reduce labor exposure, but training still needs money and time.
My first spreadsheet missed feeder changeover losses. That mistake mattered. Ask for verified cycle times using your smallest, largest, and most complex components. Request service records, spare-parts pricing, and realistic uptime data. The best-fit machine is the one that produces reliable boards at a defensible lifetime cost.
